300kHz RDI Acoustic Doppler Current Profiler S/N 588 (reporting in real-time), 4-meter bins
FSI 3D-ACM S/N 1610a (reporting in real-time)
Seabird SBE-1603 Seacats at 1 m (S/N 1570), 10 m (S/N 1571), and 40 m (S/N 1572).
Data are recorded internally and are available after the mooring is recoverd.
Data Plots (Note: Preliminary Only!):

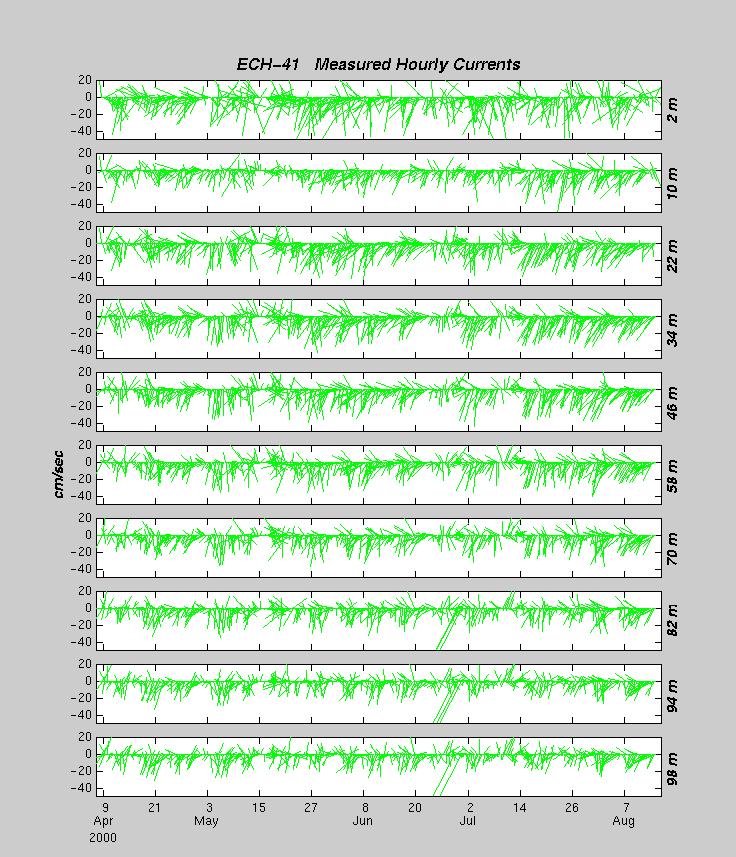

Measured Currents: hourly averaged and rotated to true north, 4-meter bins from
2 meters to 98 meters (note: bottom contamination in lower
3 bins from 28 June - 1 July)

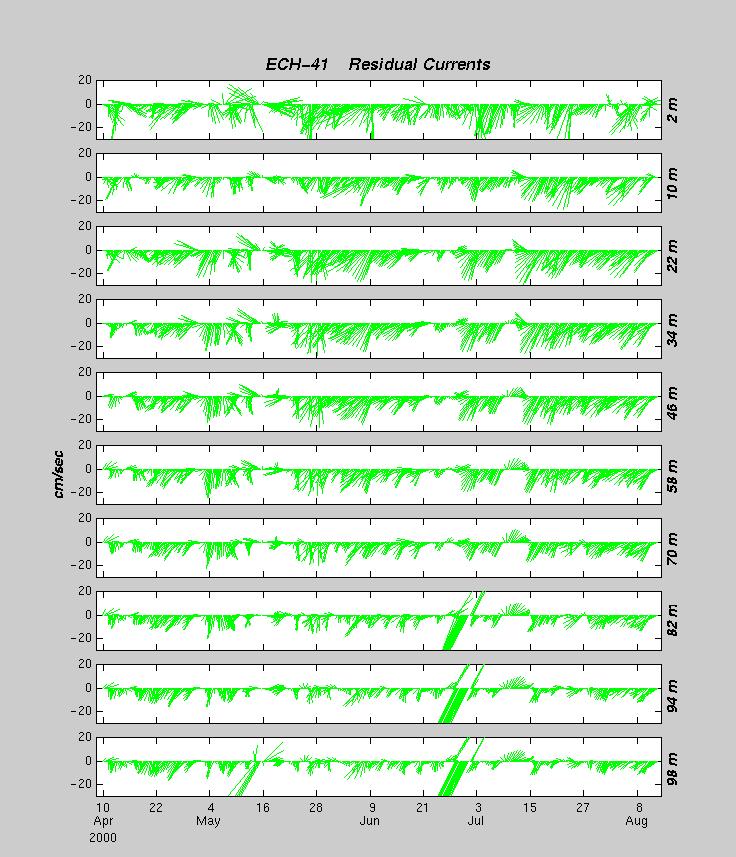

Residual Currents: Measured currents which are low-passed filtered to remove tidal currents, 4 meter bins from
2 meters to 98 meters (note: bottom contamination in lower
3 bins from 28 June -1 July).

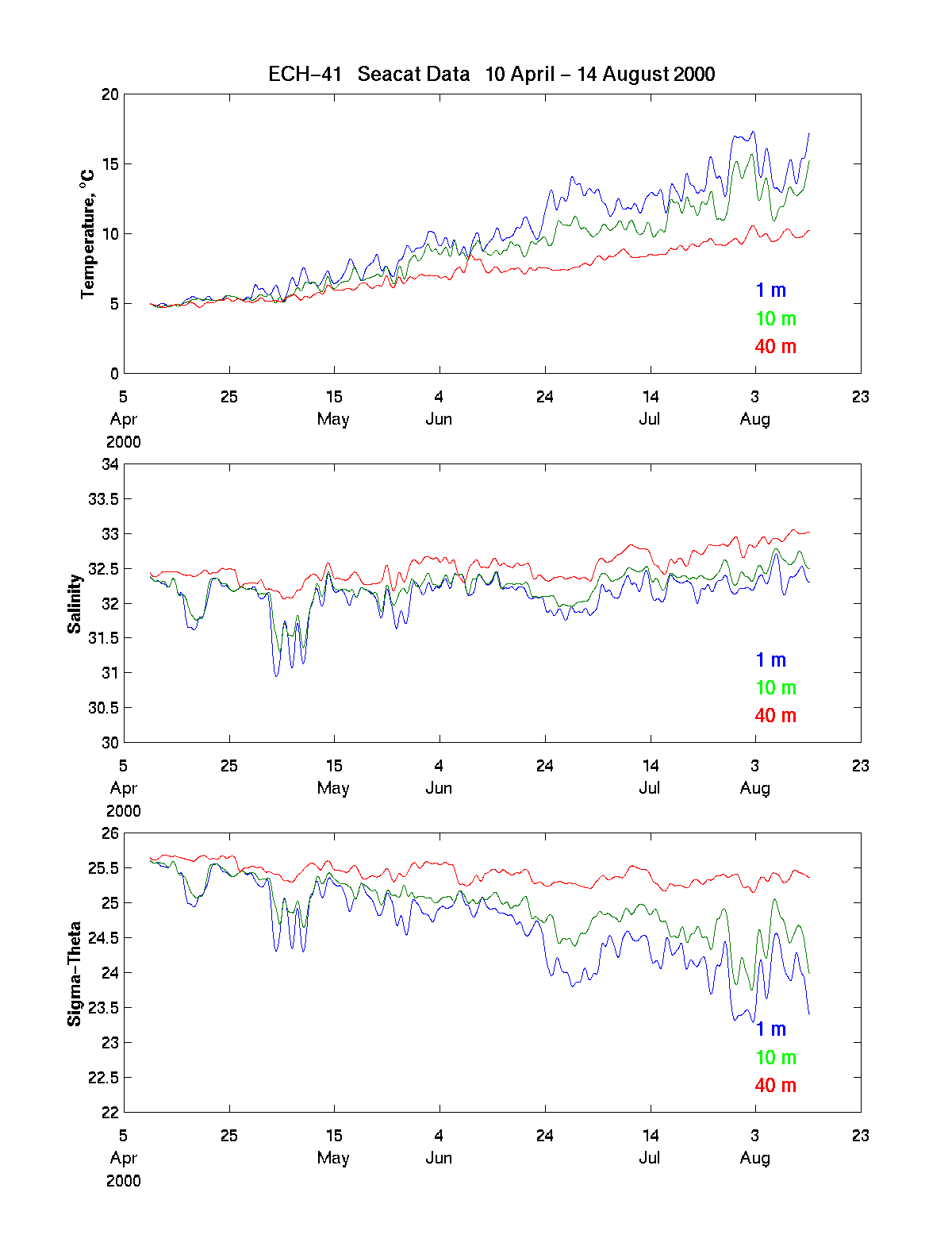

Seacat Temperature, Salinity, Sigma-Theta Plots: Seacat data which are low-passed
filtered to remove tidal effects at 1 m, 10m, and 40 mdepths.
