Mooring J0401 : Machias Bay (Recovered on May 04 2019)


Latitude: 44° 36.40´N
Longitude: 67° 21.62´W

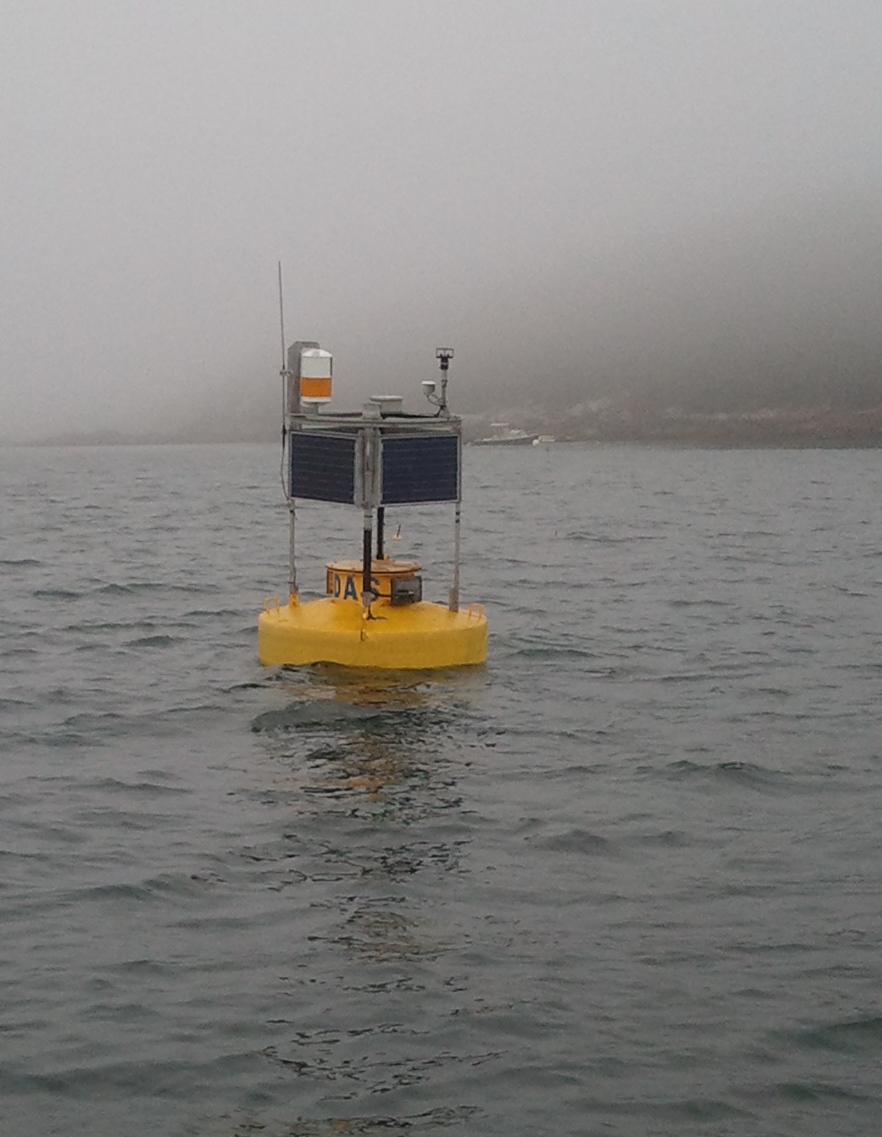

Location Description: SEANET Buoy NE of Stone Island
Deployed: Jul 20 2018
Recovered: May 04 2019
Coast Guard Light List Letter: D
Coast Guard Light List Number
Water Depth: 24 meters (79 feet)
Watch Circle Radius: 40 meters (131 feet)
Last Cell Phone Transmission: Apr 05, 10 AM EST
Last GOES Transmission: NA
Latest Event:
May 04, 09 AM EST
Recovered by Cooke Aquaculture in Eastport.


Text Reports: Surface, Ocean, Currents OR Data Download (All data for this location)

Sensor Information (this deployment only)

Latest Conditions:

Click on the graph icons below to see time series plots of the listed variables. The latest conditions are in local time but all plots are in GMT(Summer EDT is 4 hours behind GMT; Winter EST is 5 hours behind GMT; Atlantic AST is always 4 hours behind GMT).

We follow the convention that depth is measure positive "down". That's why parameters like wind speed have negative depths attached to them! The latest eastward and northward subsurface currents are displayed at a subset of available depths; no plots are presently available for current velocity vectors below 2m.

Variable (measurement depth in meters) Last
Observation		 Last
Update
(EDT)		 Most
Recent Data
Plot		 Full
Deployment
Plot		 Full
Historical
Plot

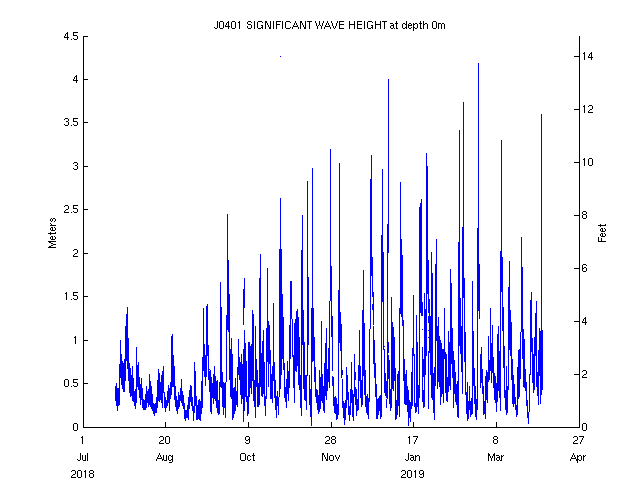

Significant Wave Height (0m)0.1 meters (0.4 ft)2019 Apr 05 3:00 PM

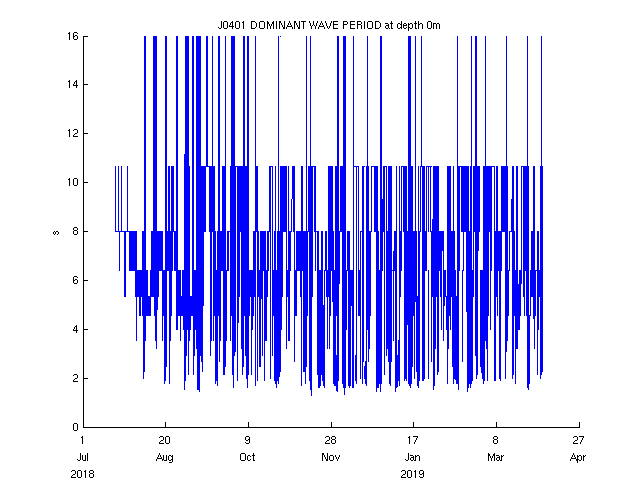

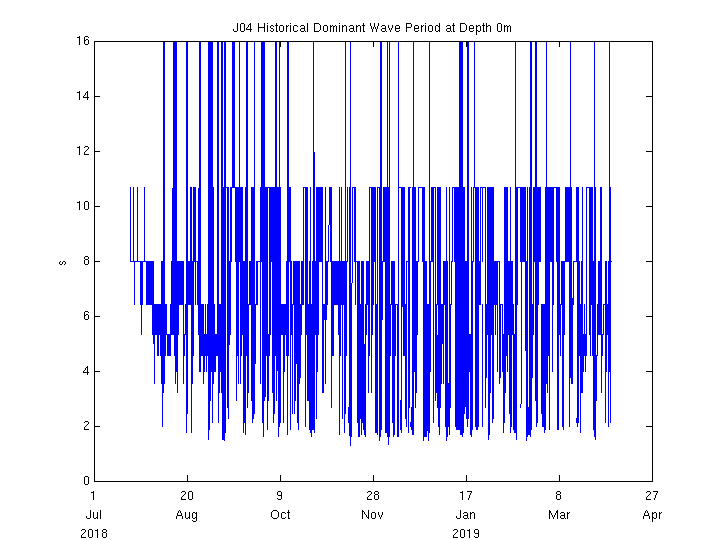

Dominant Wave Period (0m)4.6 seconds 2019 Apr 05 3:00 PM
Air Temperature (-3m)2.7 C (36.8 F)2019 Apr 05 3:00 PM

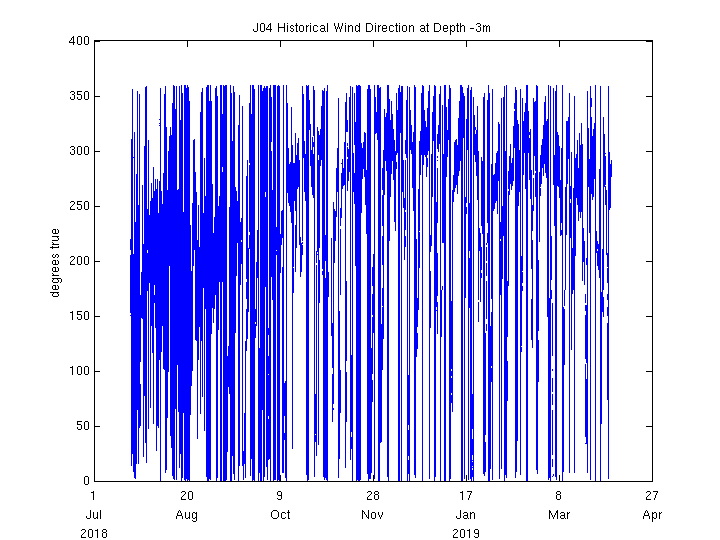

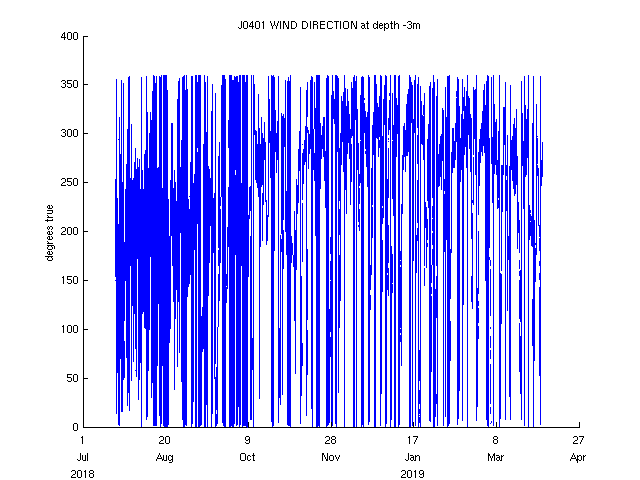

Wind Direction [Primary] (-3m)SE2019 Apr 05 3:00 PM

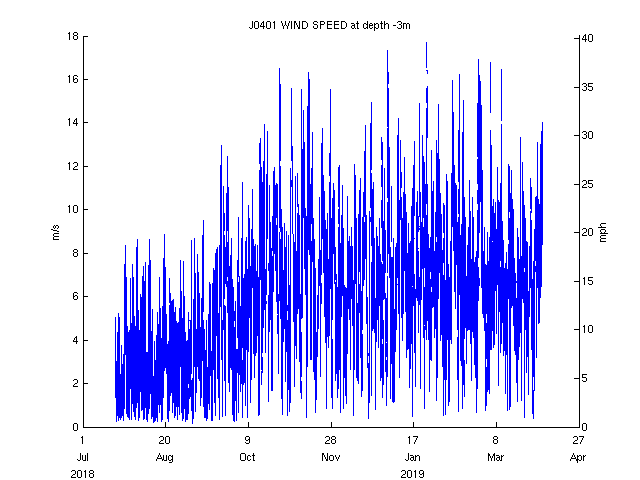

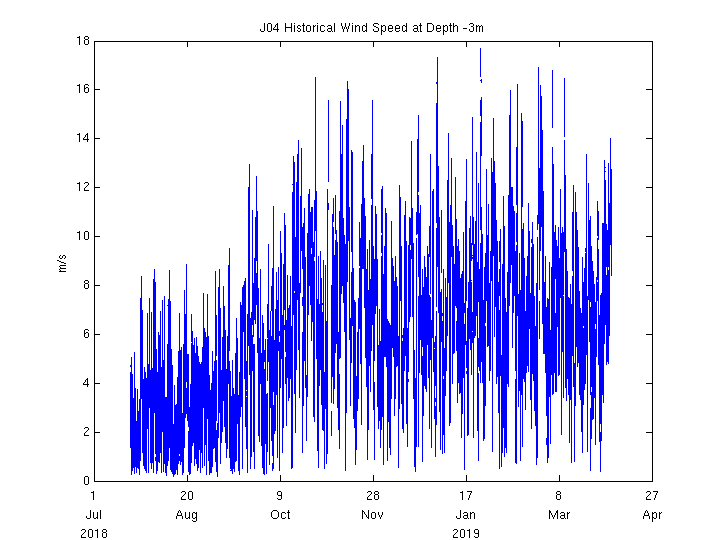

Wind Speed [Primary] (-3m)2.0 m/s (4 mph, 4 kts)2019 Apr 05 3:00 PM
Wind Gust [Primary] (-3m)4.2 m/s (9 mph, 8 kts)2019 Apr 05 3:00 PM
Water Temperature **(aan)** (2m)0.3 C (32.5 F) 2019 Apr 05 3:00 PM
Water Temperature (2m)0.5 C (32.8 F) 2019 Apr 05 3:00 PM
Water Temperature (5m)3.1 C (37.6 F) 2019 Apr 05 2:20 PM

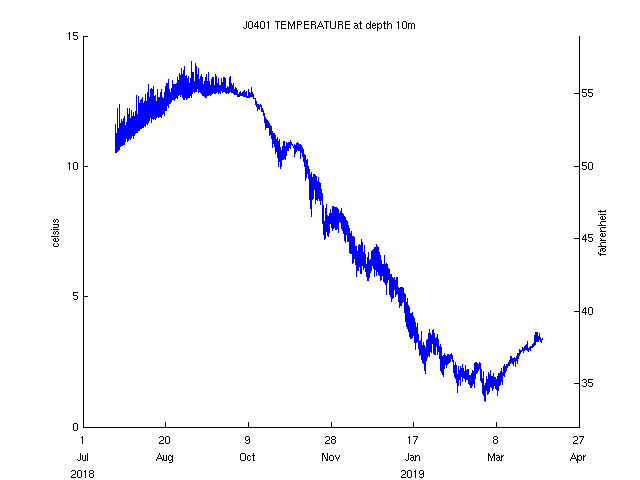

Water Temperature (10m)3.1 C (37.6 F) 2019 Apr 05 2:20 PM

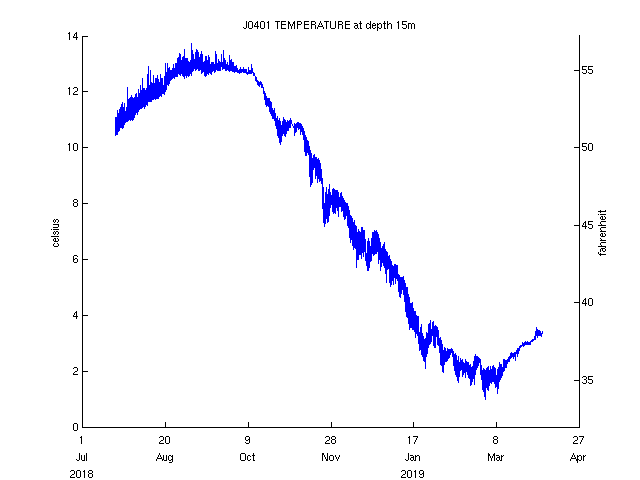

Water Temperature (15m)3.2 C (37.8 F) 2019 Apr 05 2:20 PM

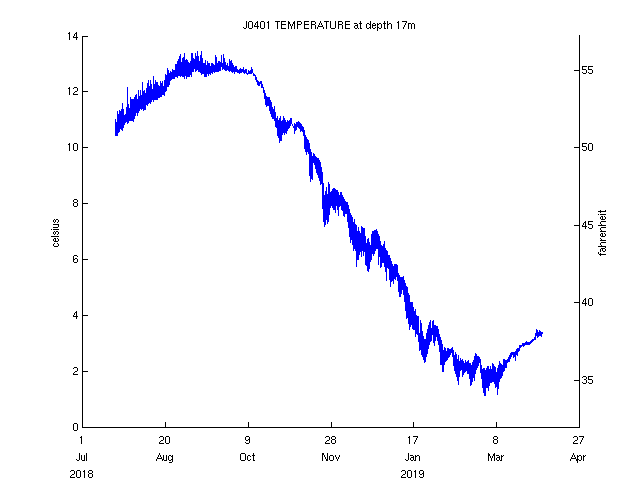

Water Temperature (17m)3.2 C (37.8 F) 2019 Apr 05 2:20 PM

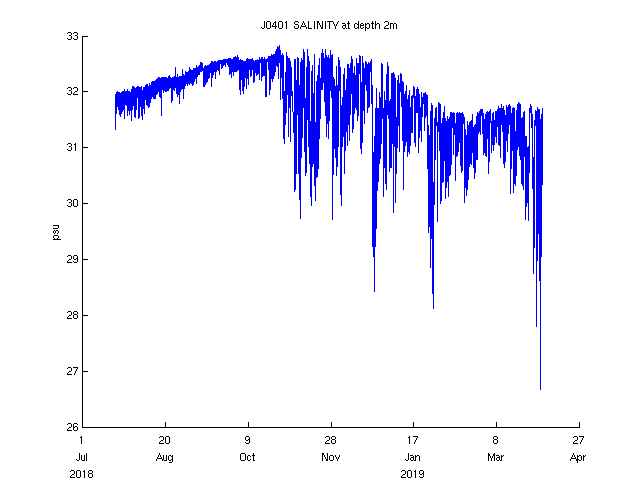

Salinity (2m)N/A2019 Apr 05 3:00 PM

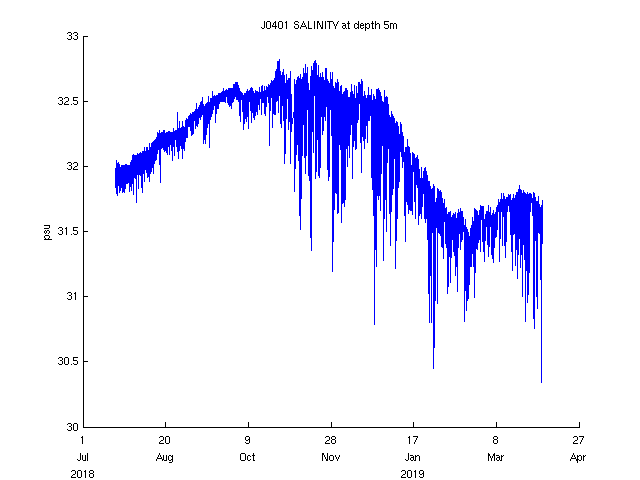

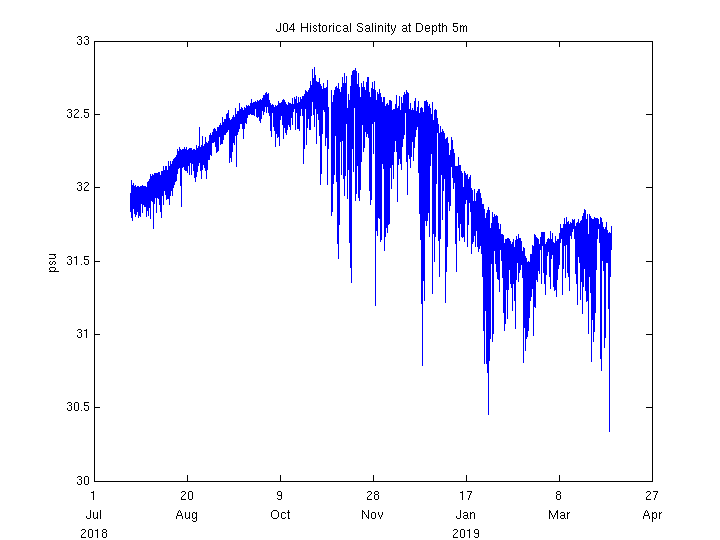

Salinity (5m)31.0 psu 2019 Apr 05 2:20 PM

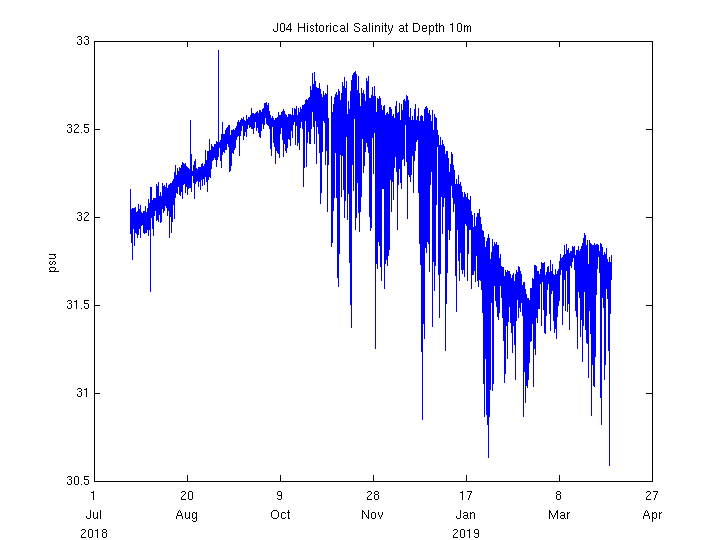

Salinity (10m)31.1 psu 2019 Apr 05 2:20 PM

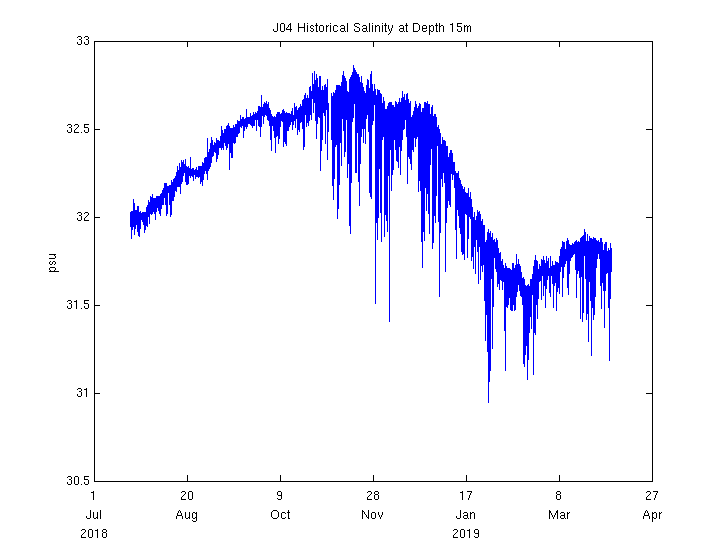

Salinity (15m)31.4 psu 2019 Apr 05 2:20 PM

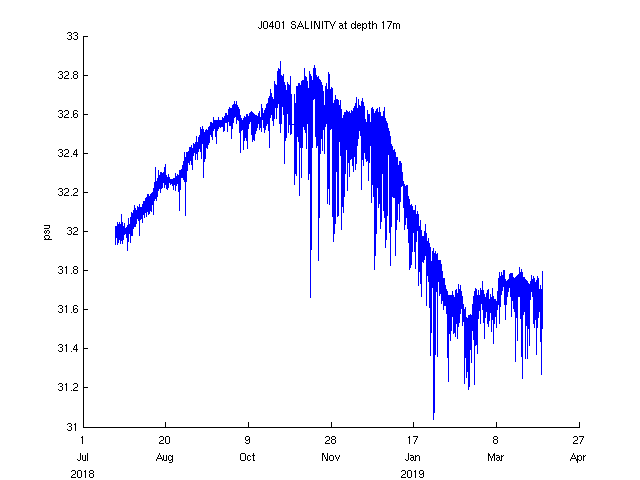

Salinity (17m)31.3 psu 2019 Apr 05 2:20 PM

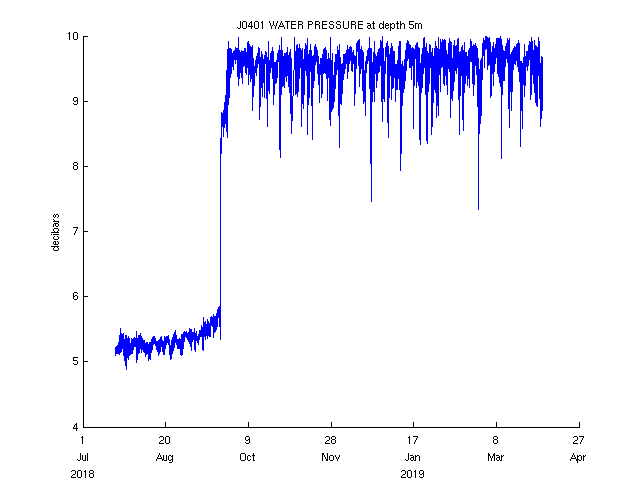

Pressure (5m)9.8 decibars 2019 Apr 05 2:20 PM
Pressure (10m)10.1 decibars 2019 Apr 05 2:20 PM

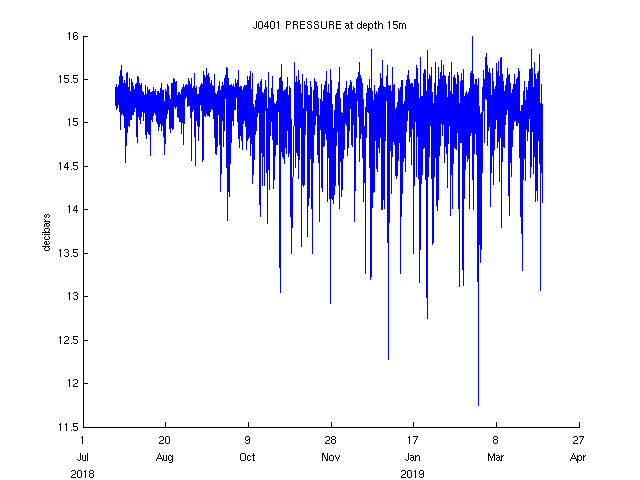

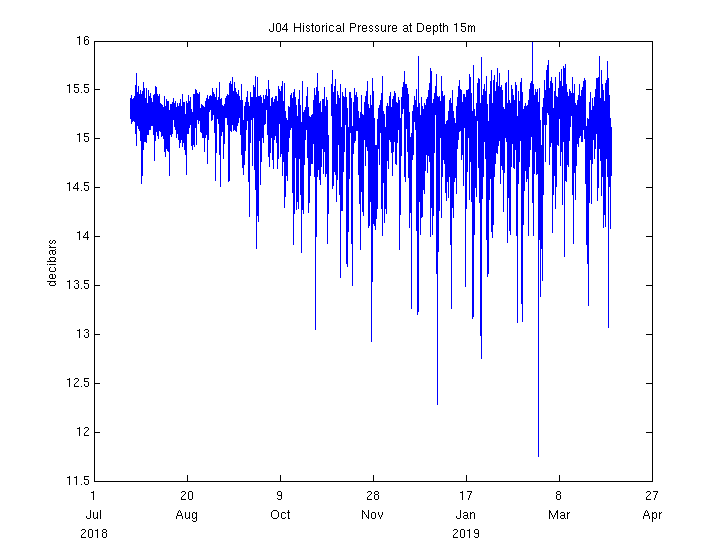

Pressure (15m)15.3 decibars 2019 Apr 05 2:20 PM
Sigma-T (2m)N/A2019 Apr 05 3:00 PM
Sigma-T (5m)24.7 kg/m^3 2019 Apr 05 2:20 PM

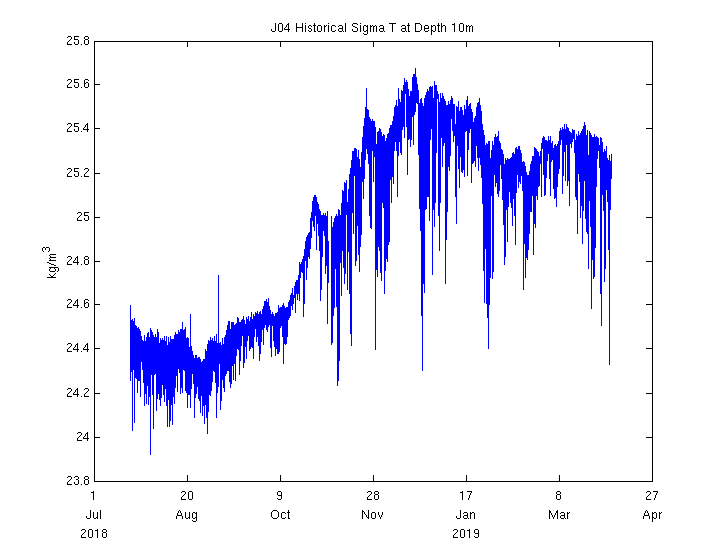

Sigma-T (10m)24.7 kg/m^3 2019 Apr 05 2:20 PM

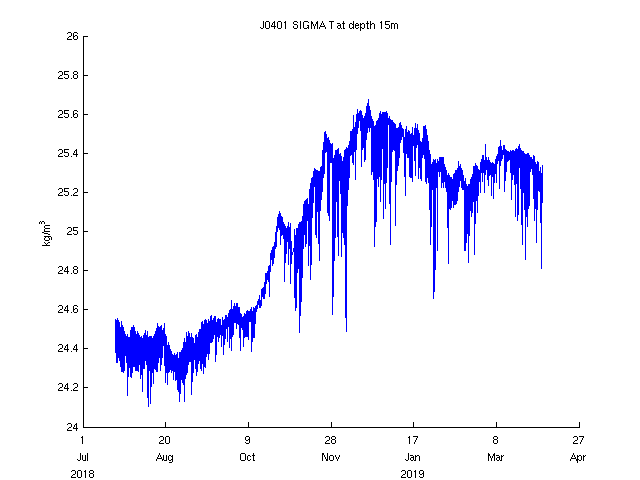

Sigma-T (15m)25.0 kg/m^3 2019 Apr 05 2:20 PM

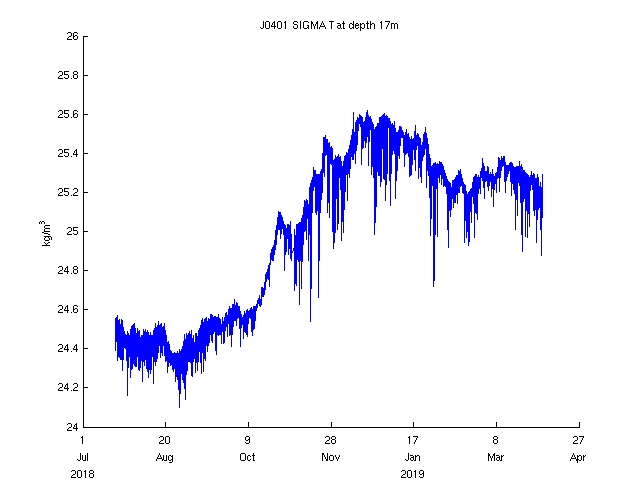

Sigma-T (17m)24.9 kg/m^3 2019 Apr 05 2:20 PM

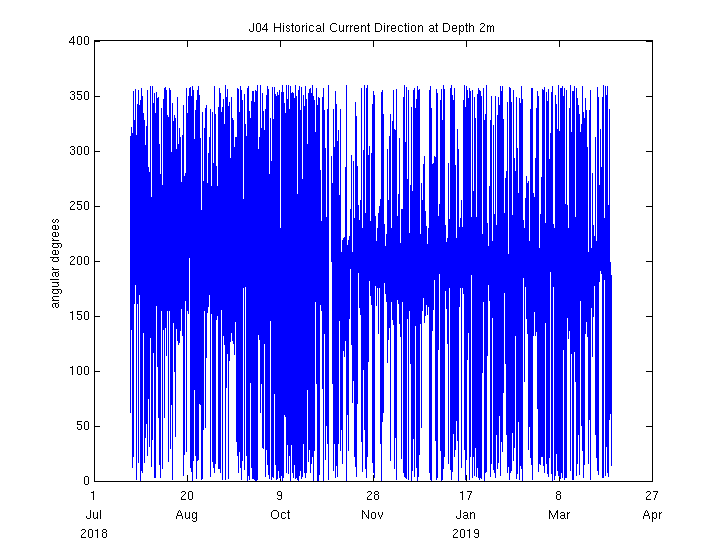

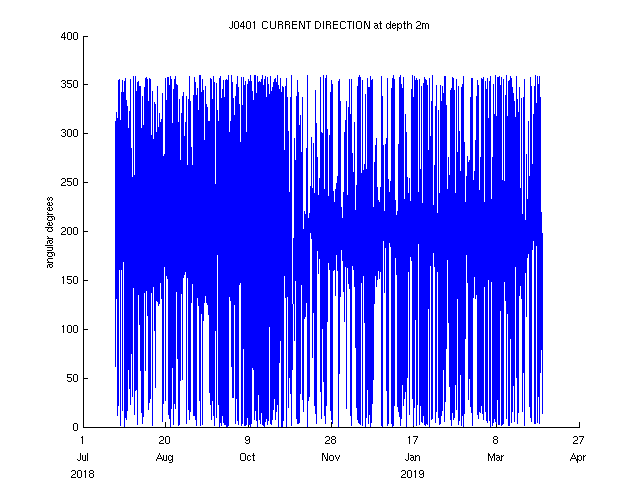

Current Direction (2m)WNW2019 Apr 05 3:00 PM
Current Speed (2m)16.4 cm/s (0.32 kts)2019 Apr 05 3:00 PM

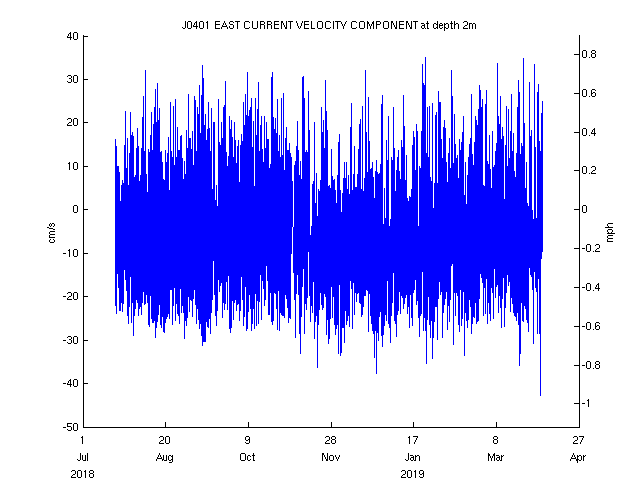

East Current Velocity (2m)-15.5 cm/s (-0.30 kts)2019 Apr 05 3:00 PM
East Current Velocity (5m)N/A2019 Apr 05 2:40 PM
East Current Velocity (6m)N/A2019 Apr 05 2:40 PM
East Current Velocity (7m)N/A2019 Apr 05 2:40 PM
East Current Velocity (8m)N/A2019 Apr 05 2:40 PM
East Current Velocity (9m)N/A2019 Apr 05 2:40 PM
East Current Velocity (10m)N/A2019 Apr 05 2:40 PM
East Current Velocity (11m)N/A2019 Apr 05 2:40 PM
East Current Velocity (12m)N/A2019 Apr 05 2:40 PM
East Current Velocity (13m)N/A2019 Apr 05 2:40 PM
East Current Velocity (14m)N/A2019 Apr 05 2:40 PM
East Current Velocity (15m)N/A2019 Apr 05 2:40 PM
East Current Velocity (16m)N/A2019 Apr 05 2:40 PM
East Current Velocity (18m)N/A2019 Apr 05 2:40 PM
East Current Velocity (19m)N/A2019 Apr 05 2:40 PM
East Current Velocity (20m)N/A2019 Apr 05 2:40 PM
East Current Velocity (21m)N/A2019 Apr 05 2:40 PM
East Current Velocity (22m)N/A2019 Apr 05 2:40 PM
North Current Velocity (2m)5.5 cm/s (0.11 kts)2019 Apr 05 3:00 PM
North Current Velocity (5m)N/A2019 Apr 05 2:40 PM
North Current Velocity (6m)N/A2019 Apr 05 2:40 PM
North Current Velocity (7m)N/A2019 Apr 05 2:40 PM
North Current Velocity (8m)N/A2019 Apr 05 2:40 PM
North Current Velocity (9m)N/A2019 Apr 05 2:40 PM
North Current Velocity (10m)N/A2019 Apr 05 2:40 PM
North Current Velocity (11m)N/A2019 Apr 05 2:40 PM
North Current Velocity (12m)N/A2019 Apr 05 2:40 PM
North Current Velocity (13m)N/A2019 Apr 05 2:40 PM
North Current Velocity (14m)N/A2019 Apr 05 2:40 PM
North Current Velocity (15m)N/A2019 Apr 05 2:40 PM
North Current Velocity (16m)N/A2019 Apr 05 2:40 PM
North Current Velocity (18m)N/A2019 Apr 05 2:40 PM
North Current Velocity (19m)N/A2019 Apr 05 2:40 PM
North Current Velocity (20m)N/A2019 Apr 05 2:40 PM
North Current Velocity (21m)N/A2019 Apr 05 2:40 PM
North Current Velocity (22m)N/A2019 Apr 05 2:40 PM

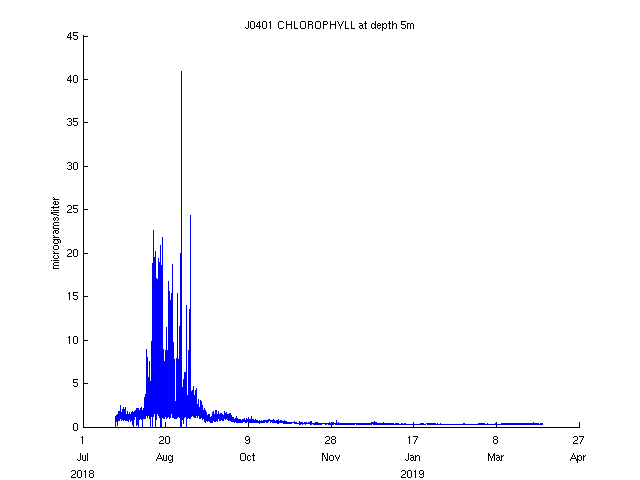

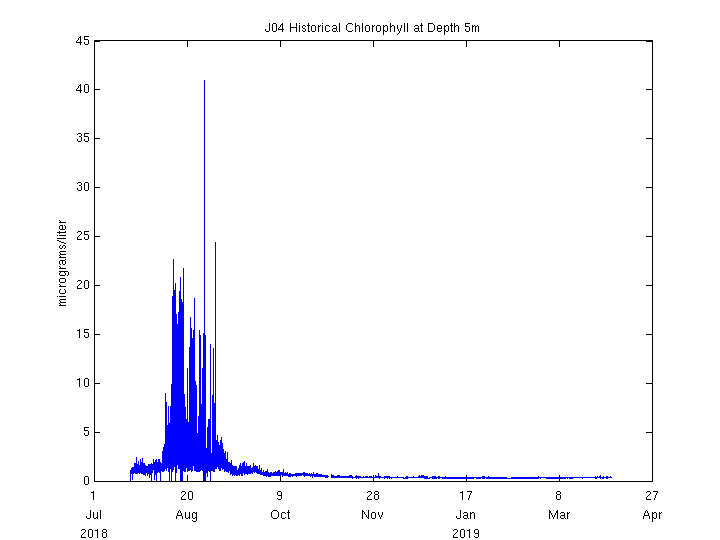

Average Chlorophyll Concentration (5m)0.4 micrograms/liter 2019 Apr 05 2:20 PM

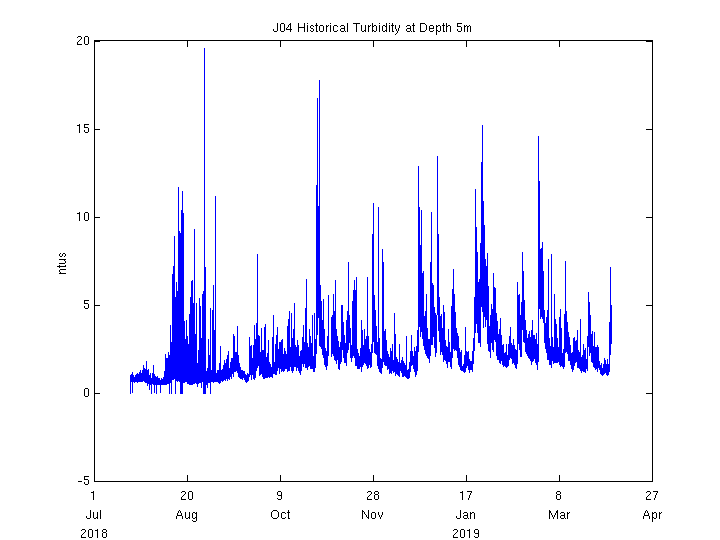

Sea water Turbidity (5m)3.4 ntus 2019 Apr 05 2:20 PM
CDOM Fluoresence (5m)1.7 ppb (QSDE) 2019 Apr 05 2:20 PM

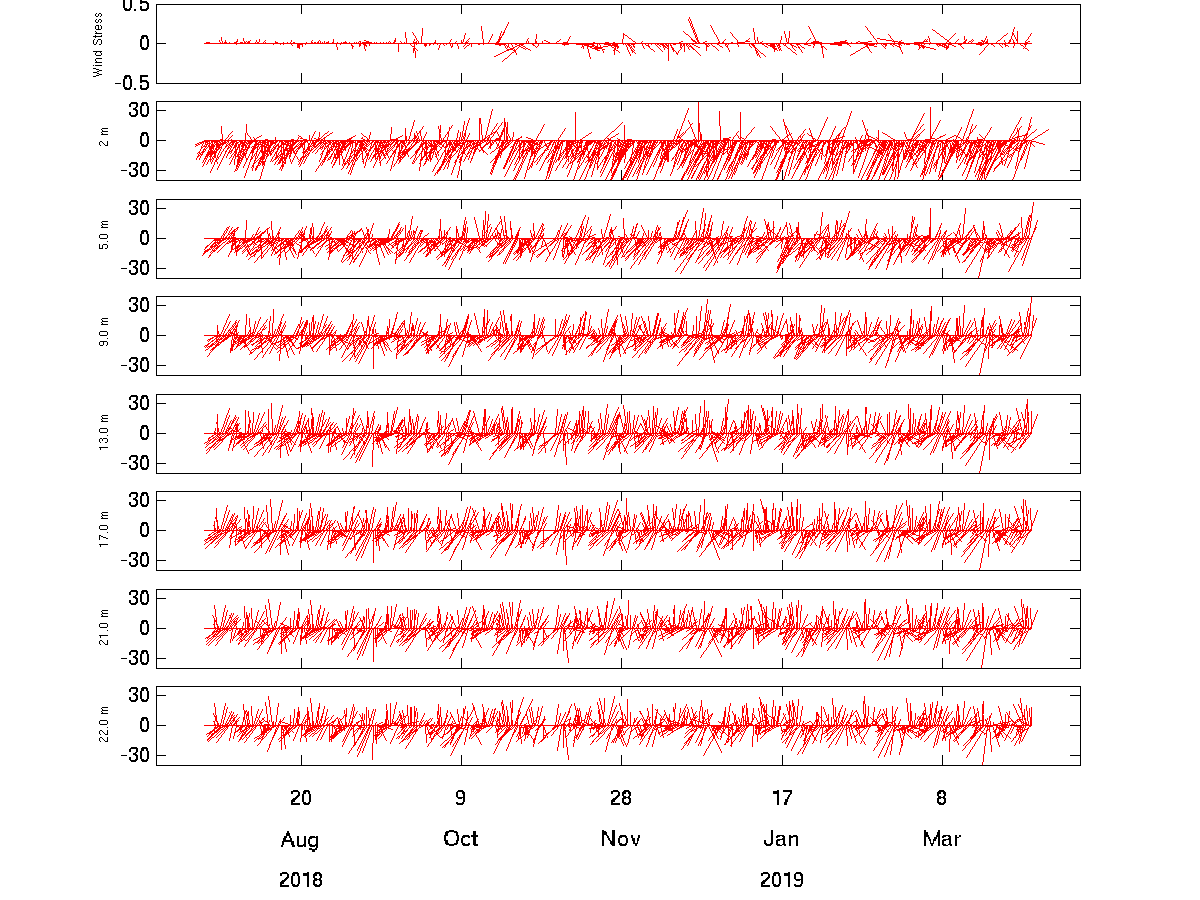

Measured Ocean Currents and Wind Stress

Hourly averaged wind stress at 4 m and currents (rotated to true north) at 2 m (current meter) and from 10 m to a maximum of 126 m (Doppler).
Latest Month's:
This Deployment:
Entire Position History:

How to Read a Stick Plot

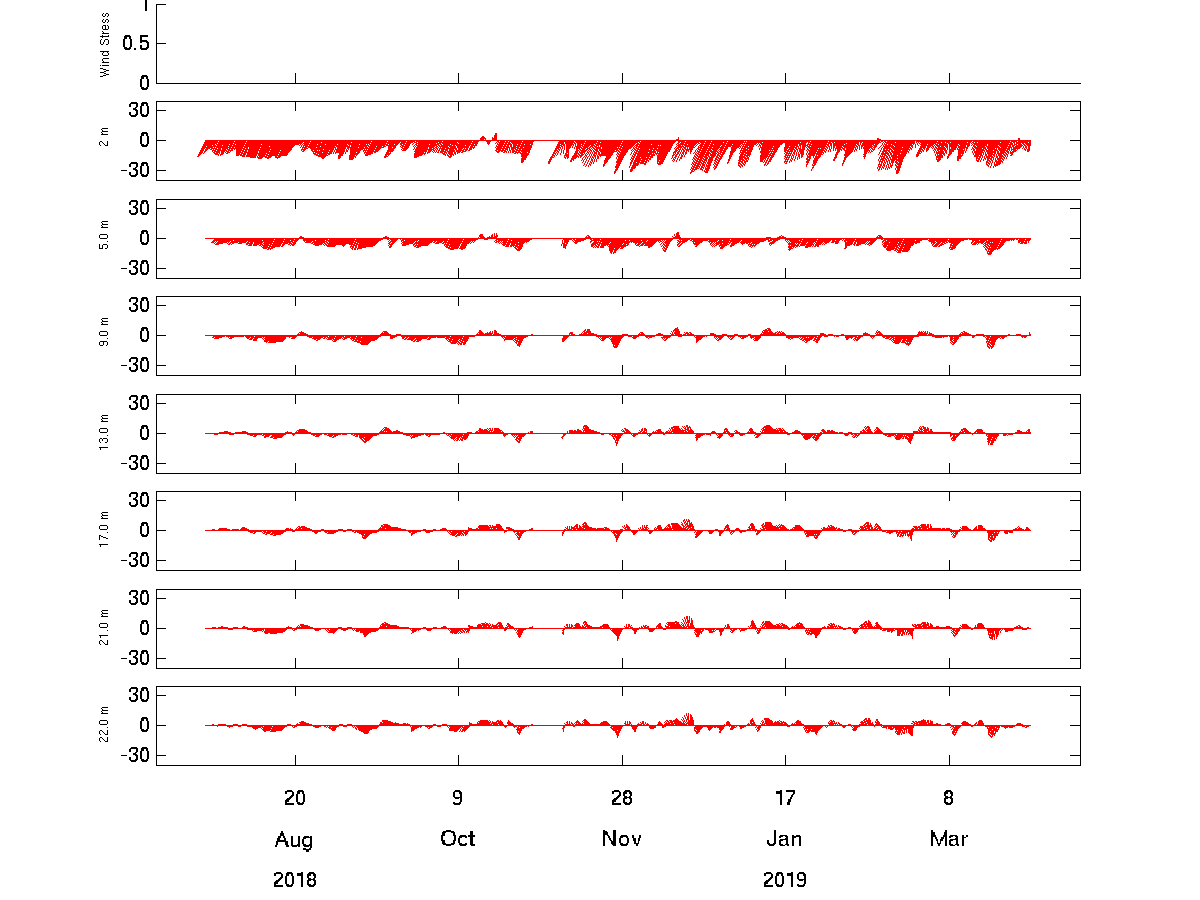

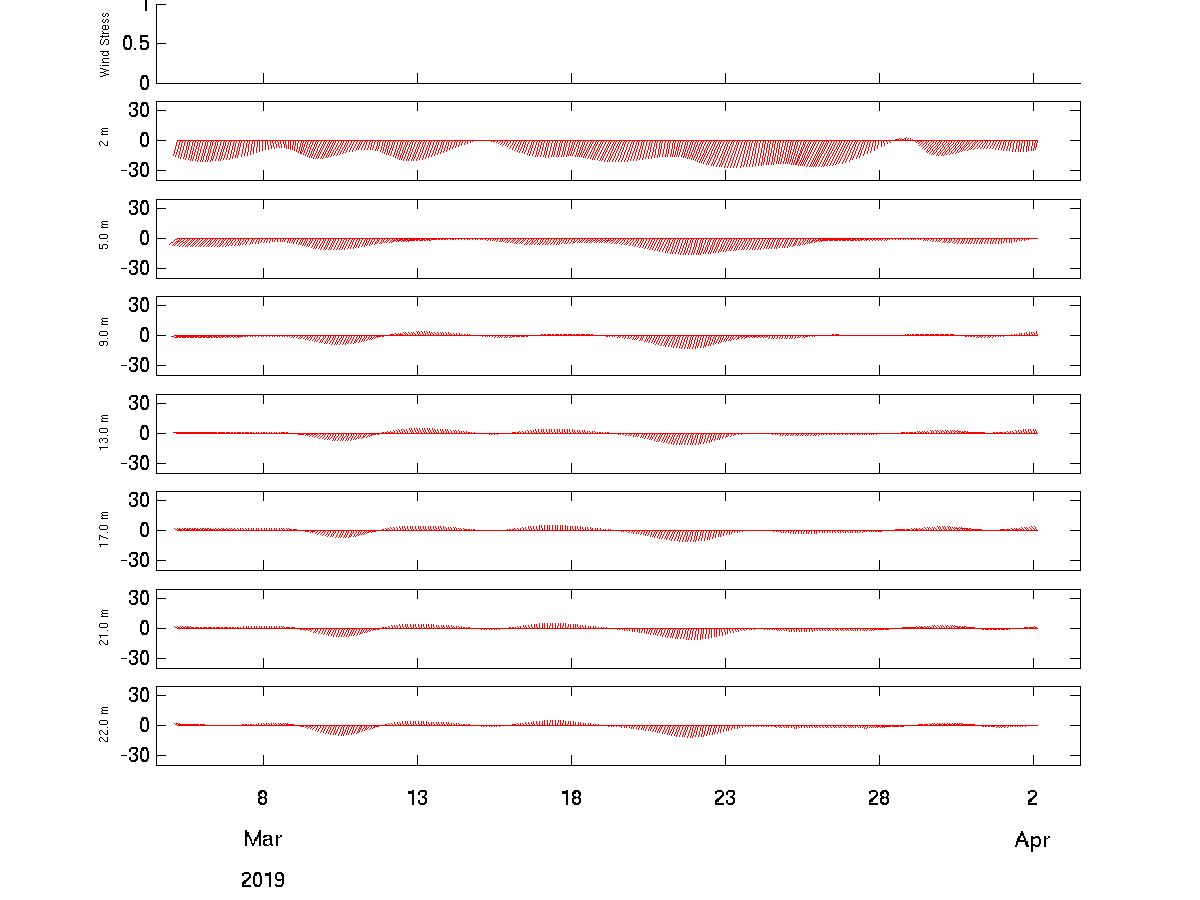

Wind and Residual Ocean Currents

Measured winds and currents which are low-pass filtered to remove tidal currents. Winds at 4 m above sea surface, surface currents at a depth of 2 m, and doppler currents at 4 meter bins from 10 meters to a maximum of 126 meters.
Latest Month's:
This Deployment:
Entire Position History:

How to Read a Stick Plot
