Mooring F0301 : Eastern Penobscot Bay (Recovered on Jan 23 2018)
|
Latitude: 44° 22.58´N Longitude: 68° 49.81´W Location Description: SEANET Buoy off Dice Head, Castine Deployed: May 19 2017 Recovered: Jan 23 2018 Coast Guard Light List Letter: F Coast Guard Light List Number Water Depth: 36 meters (118 feet) Watch Circle Radius: 40 meters (131 feet) Last Cell Phone Transmission: Jan 22, 08 PM EST Last GOES Transmission: NA Latest Event: Jan 22, 08 PM EST
Recovered by R/V Connecticut. Mooring wire parted at termination during recovery; no subsurface IMs recovered. Anchor and chain also were not recovered. |
 |
Text Reports: Surface, Ocean, Currents OR Data Download (All data for this location)
Sensor Information (this deployment only)
Latest Conditions:
Click on the graph icons below to see time series plots of the listed variables. The latest conditions are in local time but all plots are in GMT(Summer EDT is 4 hours behind GMT; Winter EST is 5 hours behind GMT; Atlantic AST is always 4 hours behind GMT).
We follow the convention that depth is measure positive "down". That's why parameters like wind speed have negative depths attached to them! The latest eastward and northward subsurface currents are displayed at a subset of available depths; no plots are presently available for current velocity vectors below 2m.
| Variable (measurement depth in meters) | Last Observation |
Last Update (EDT) |
Most Recent Data Plot |
Full Deployment Plot |
Full Historical Plot |
|---|---|---|---|---|---|

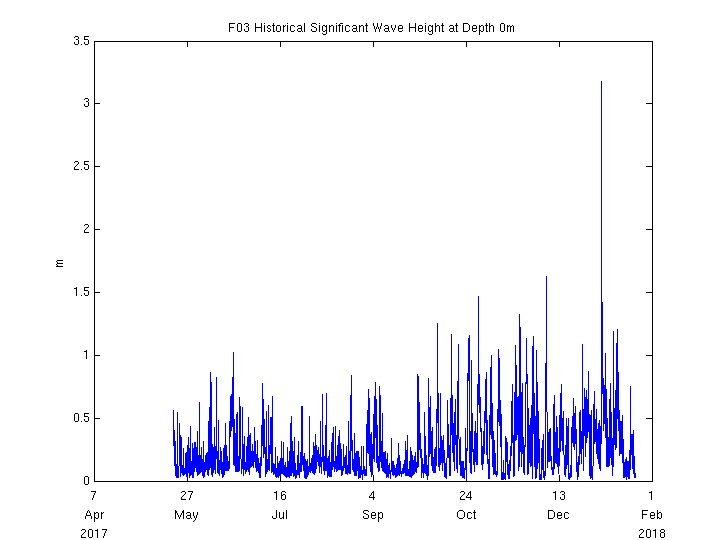

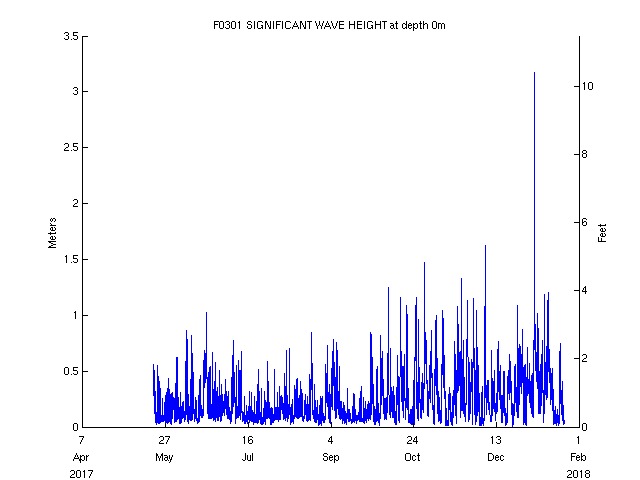

| Significant Wave Height (0m) | 0.0 meters (0.1 ft) | 2018 Jan 23 1:00 AM |
|
|
|

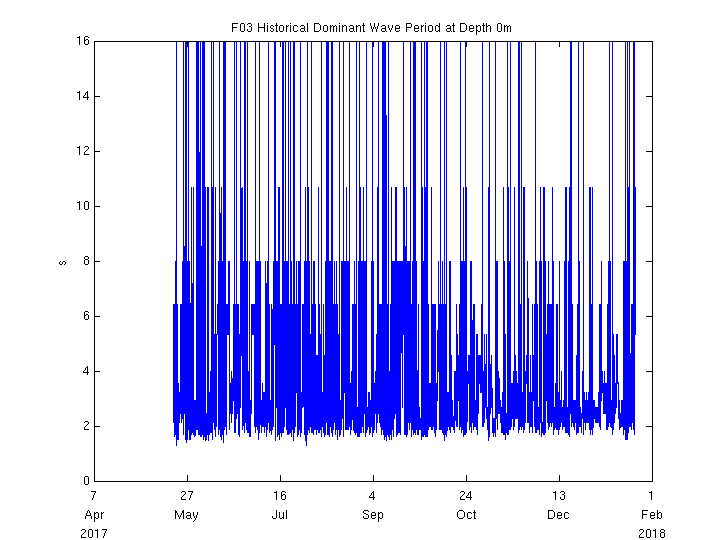

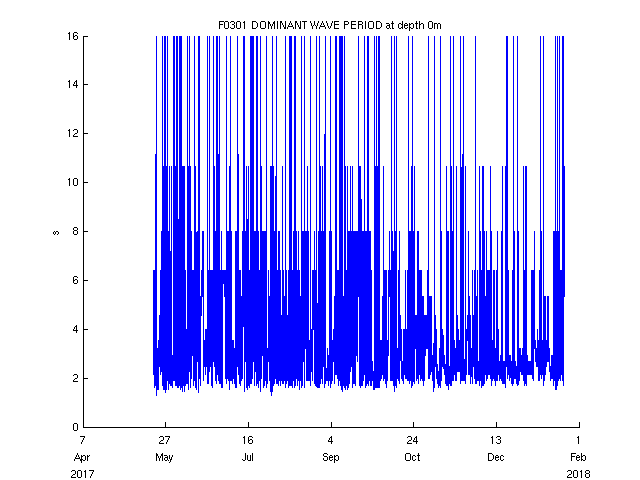

| Dominant Wave Period (0m) | 6.4 seconds | 2018 Jan 23 1:00 AM |
|
|
|

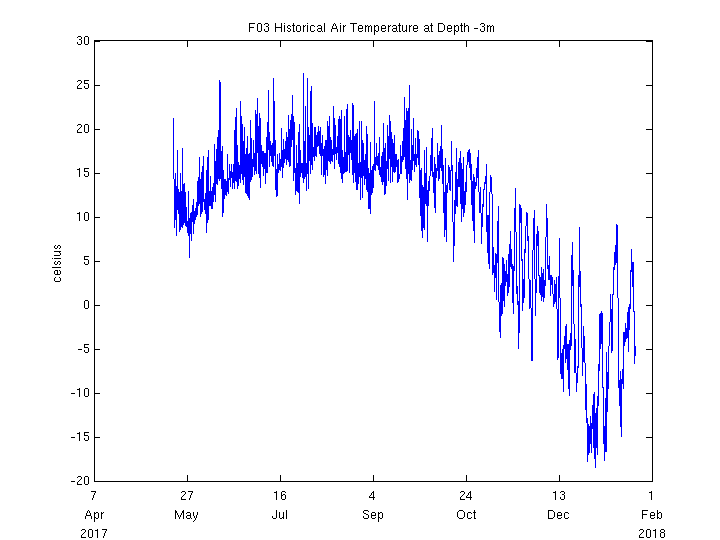

| Air Temperature (-3m) | -4.7 C (23.6 F) | 2018 Jan 23 1:00 AM |
|
|
|

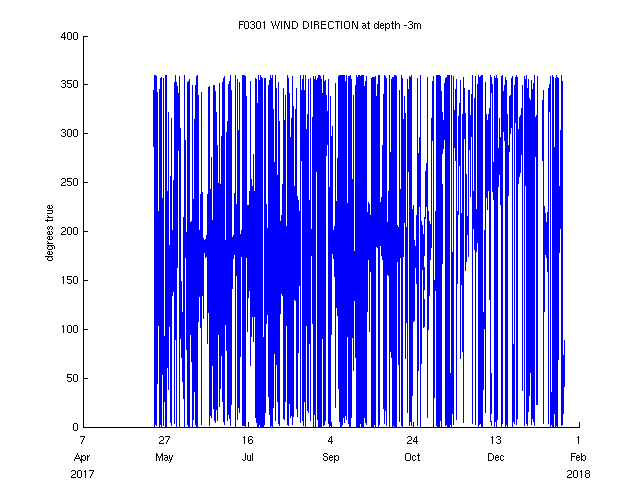

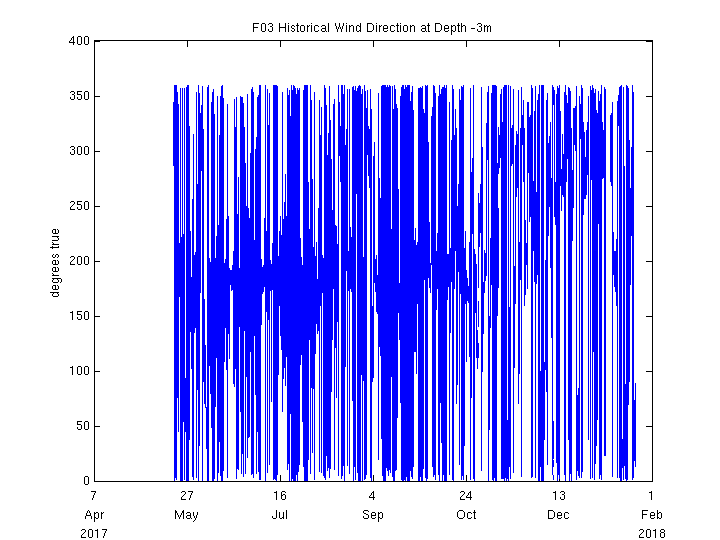

| Wind Direction [Primary] (-3m) | East | 2018 Jan 23 1:00 AM |
|
|
|

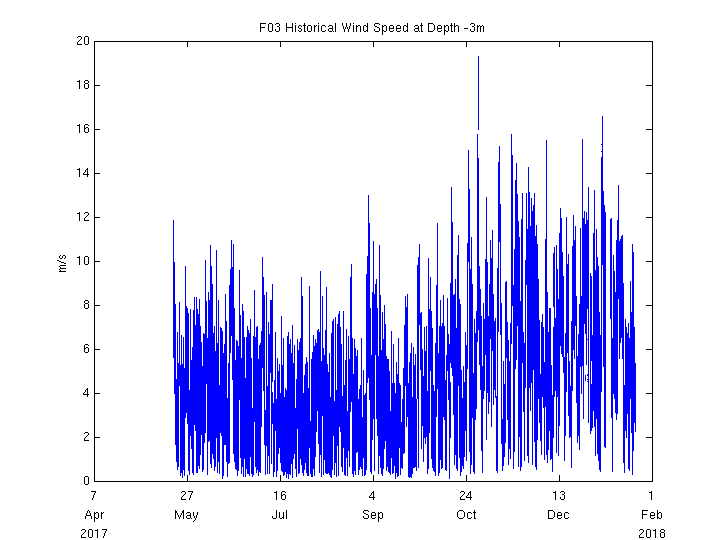

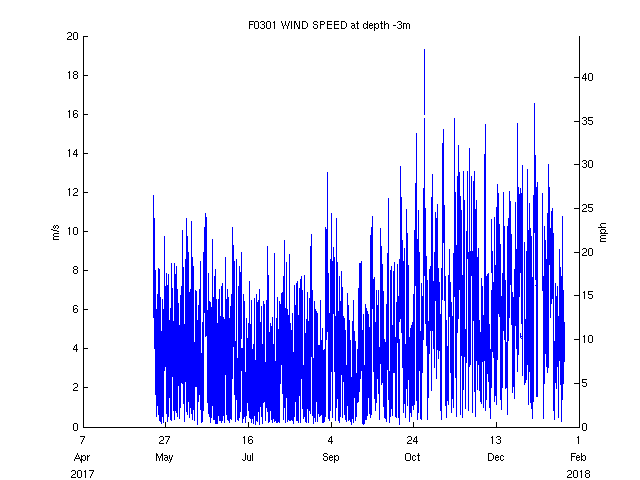

| Wind Speed [Primary] (-3m) | 5.1 m/s (11 mph, 10 kts) | 2018 Jan 23 1:00 AM |
|
|
|

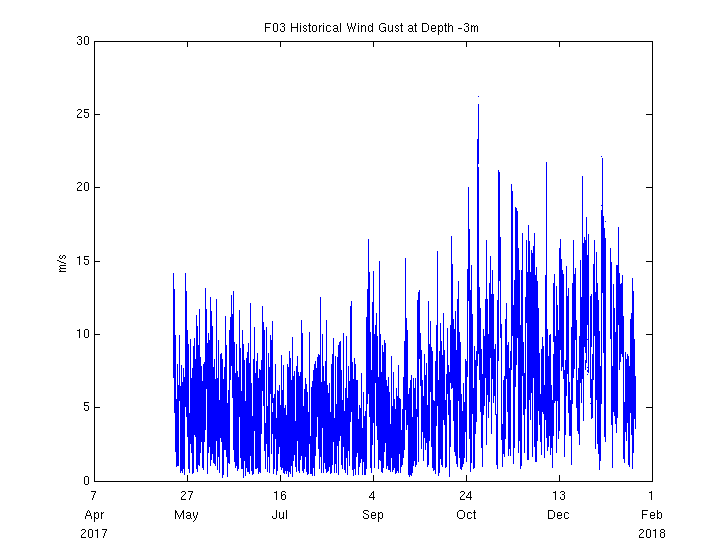

| Wind Gust [Primary] (-3m) | 6.7 m/s (15 mph, 13 kts) | 2018 Jan 23 1:00 AM |
|
|
|

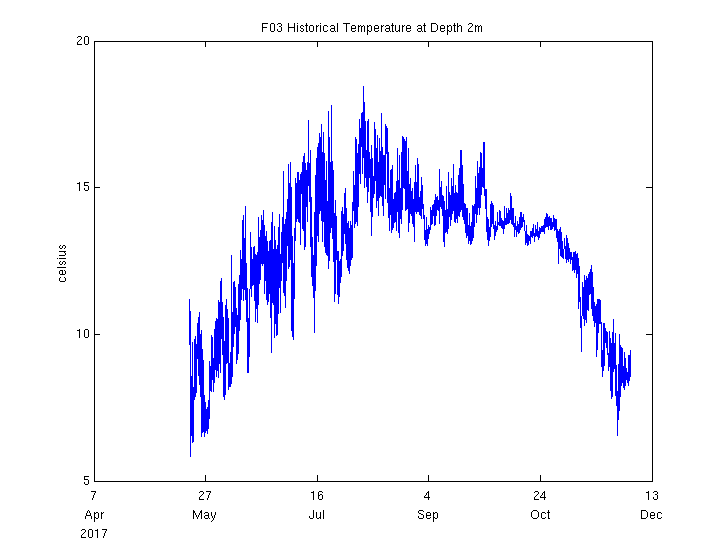

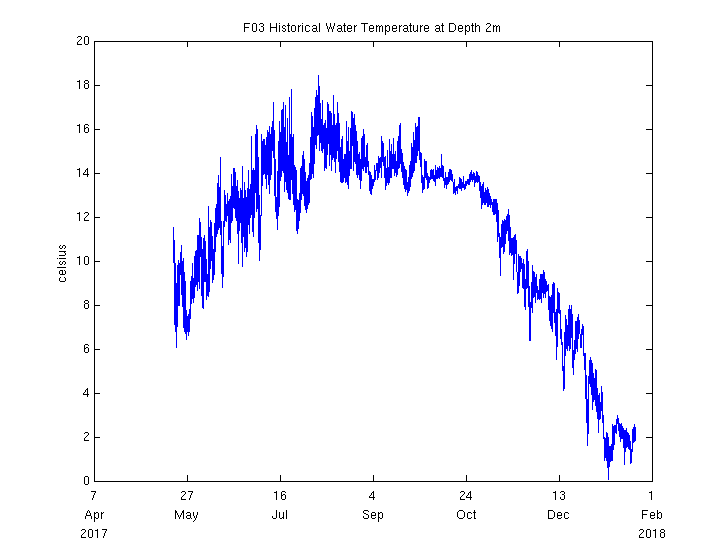

| Water Temperature (2m) | 1.9 C (35.5 F) | 2018 Jan 23 1:00 AM |
|
|
|
| Water Temperature (2m) | 8.8 C (47.9 F) | 2017 Dec 03 9:20 AM |
|
|
|

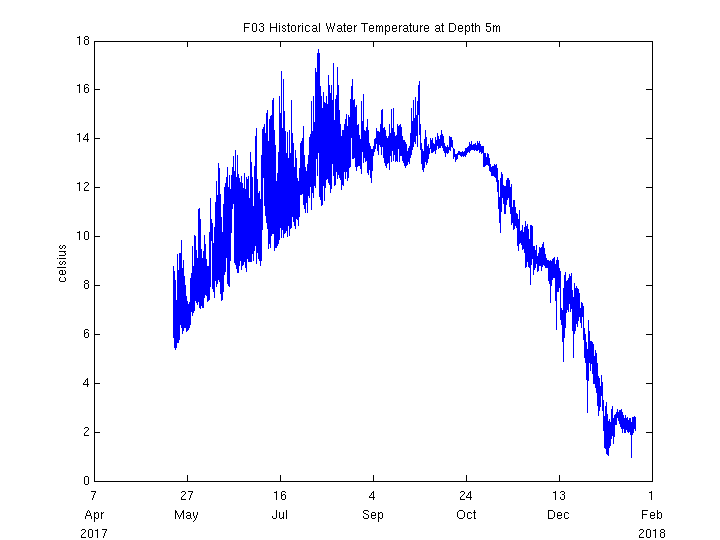

| Water Temperature (5m) | 2.1 C (35.8 F) | 2018 Jan 23 1:00 AM |
|
|
|

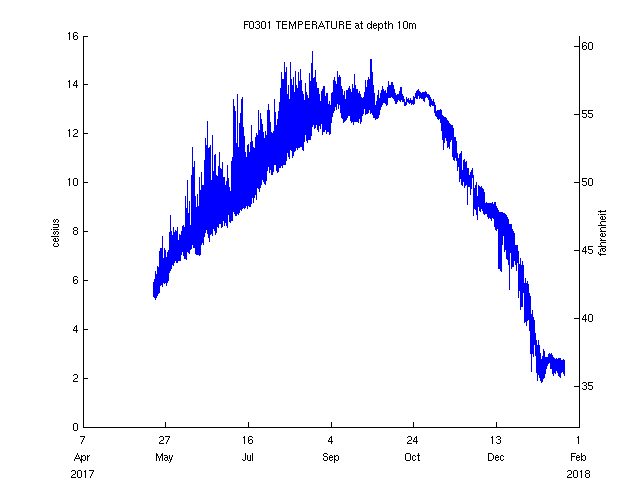

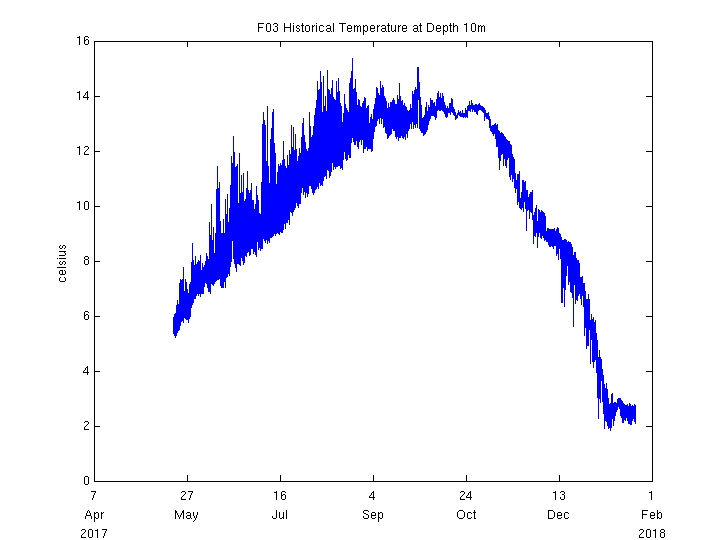

| Water Temperature (10m) | 2.4 C (36.3 F) | 2018 Jan 23 1:00 AM |
|
|
|

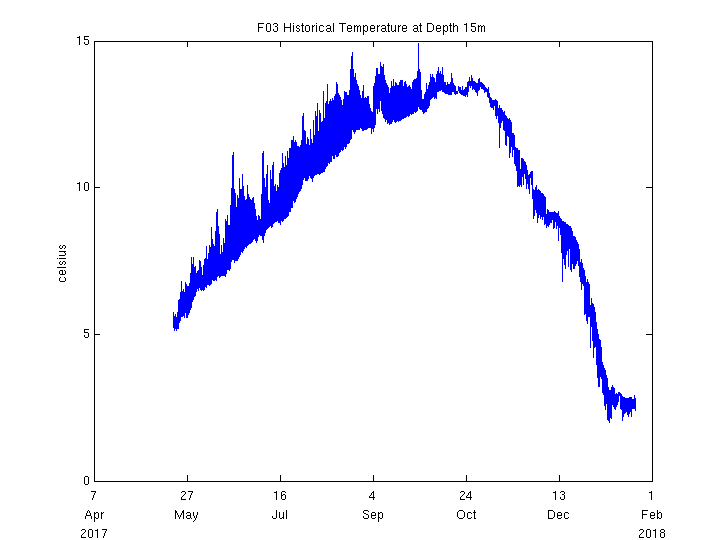

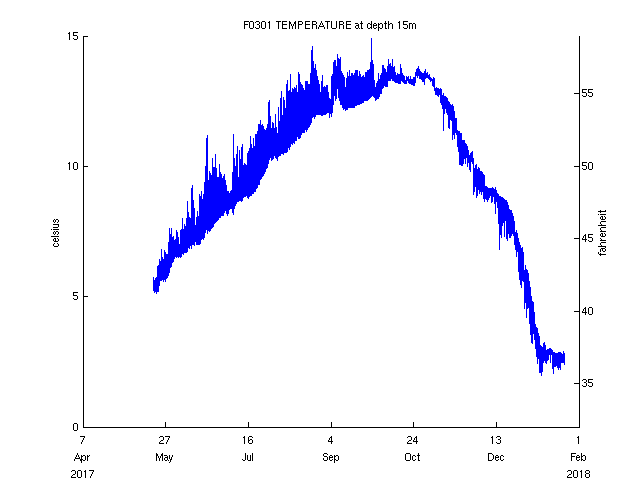

| Water Temperature (15m) | 2.5 C (36.4 F) | 2018 Jan 23 1:00 AM |
|
|
|

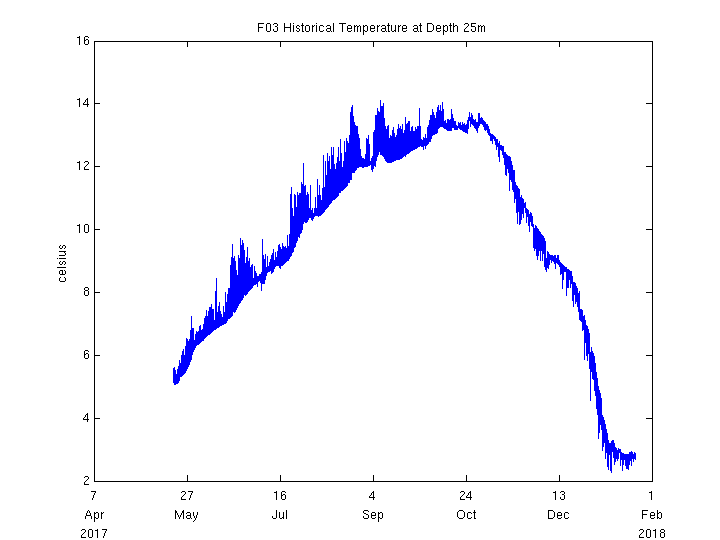

| Water Temperature (25m) | 2.7 C (36.9 F) | 2018 Jan 23 1:00 AM |
|
|
|

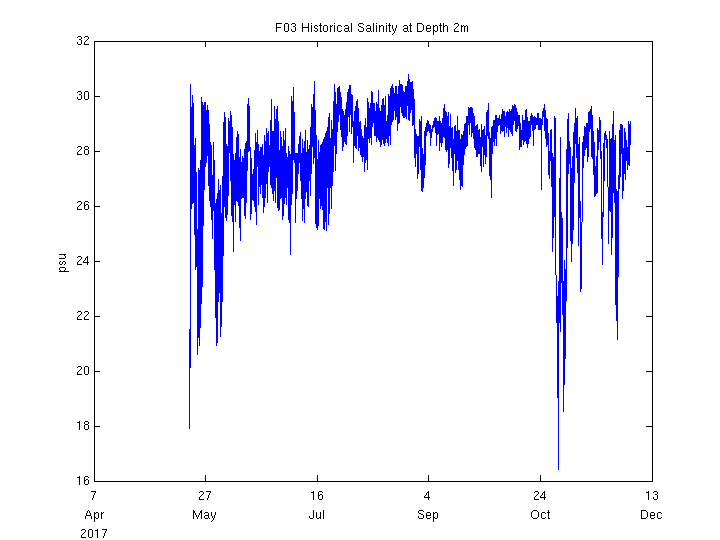

| Salinity (2m) | 28.5 psu | 2017 Dec 03 9:20 AM |
|
|
|

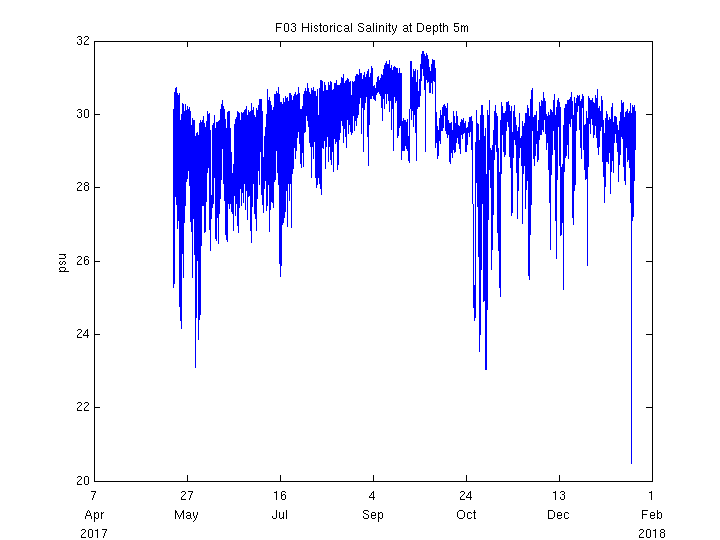

| Salinity (5m) | 29.1 psu | 2018 Jan 23 1:00 AM |
|
|
|

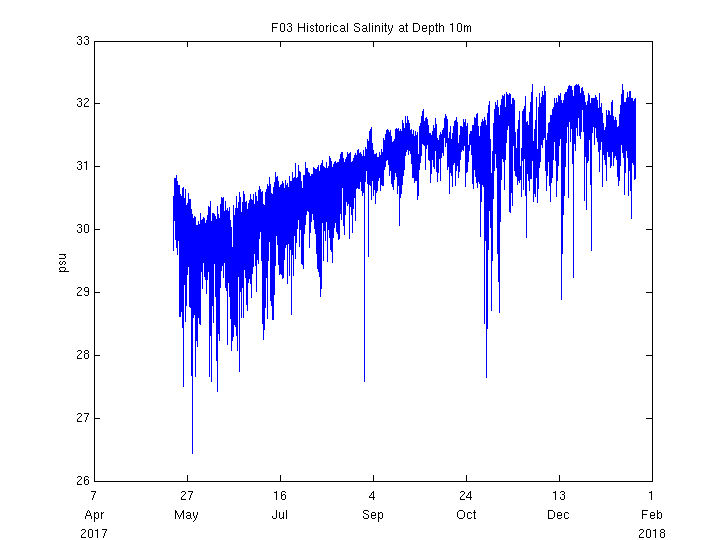

| Salinity (10m) | 31.1 psu | 2018 Jan 23 1:00 AM |
|
|
|

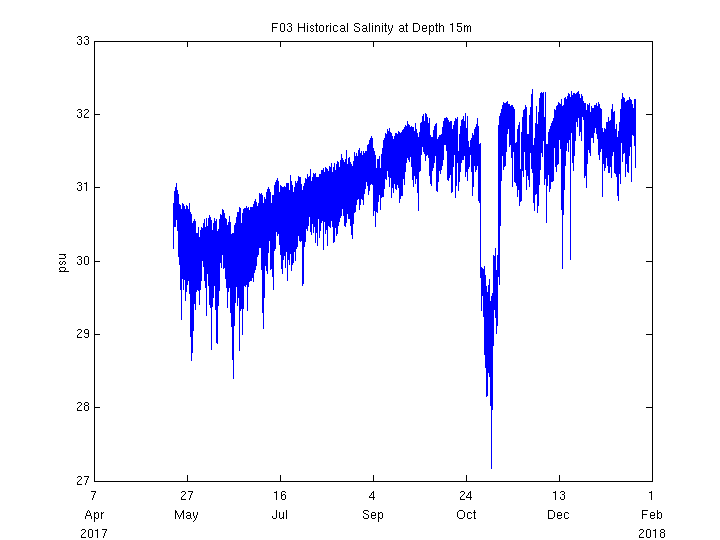

| Salinity (15m) | 31.6 psu | 2018 Jan 23 1:00 AM |
|
|
|

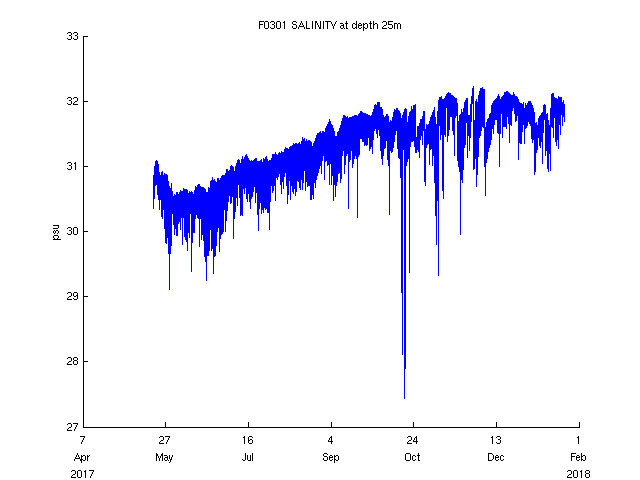

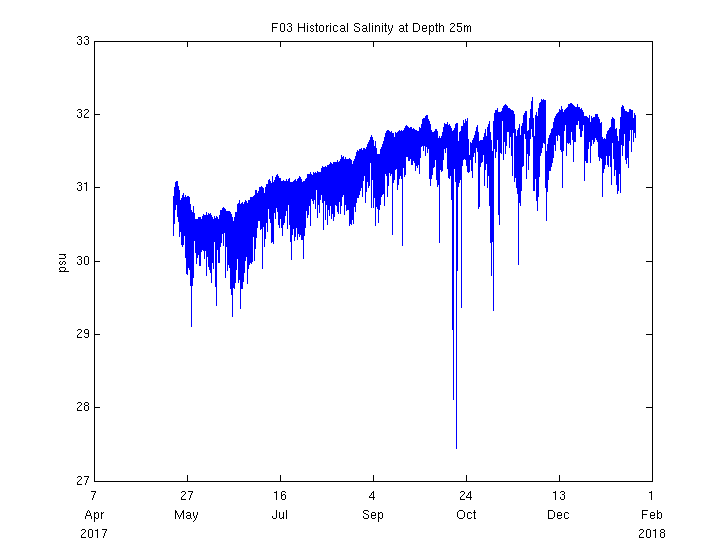

| Salinity (25m) | 31.8 psu | 2018 Jan 23 1:00 AM |
|
|
|

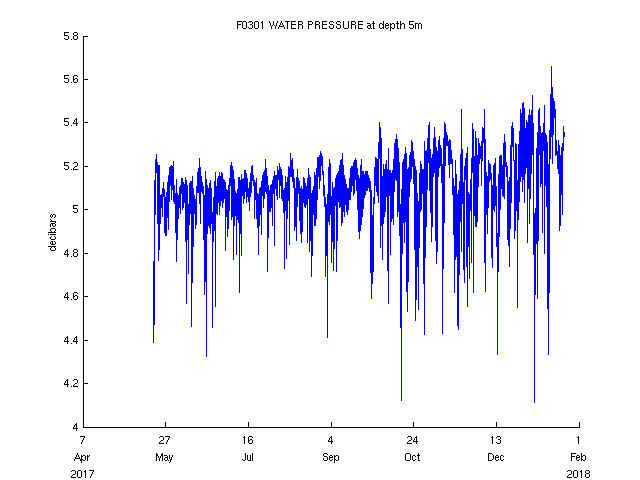

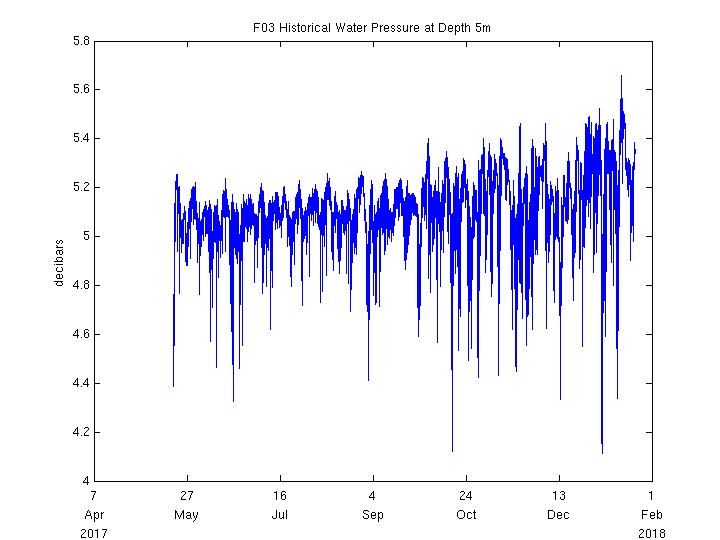

| Pressure (5m) | 5.3 decibars | 2018 Jan 23 1:00 AM |
|
|
|

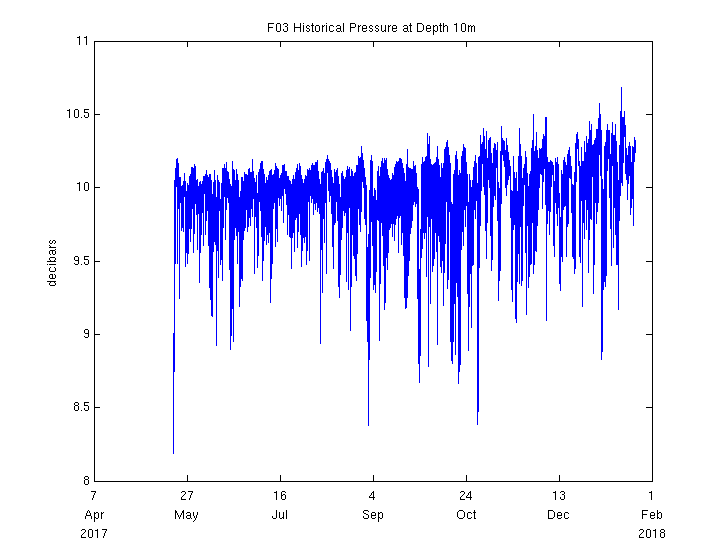

| Pressure (10m) | 10.3 decibars | 2018 Jan 23 1:00 AM |
|
|
|

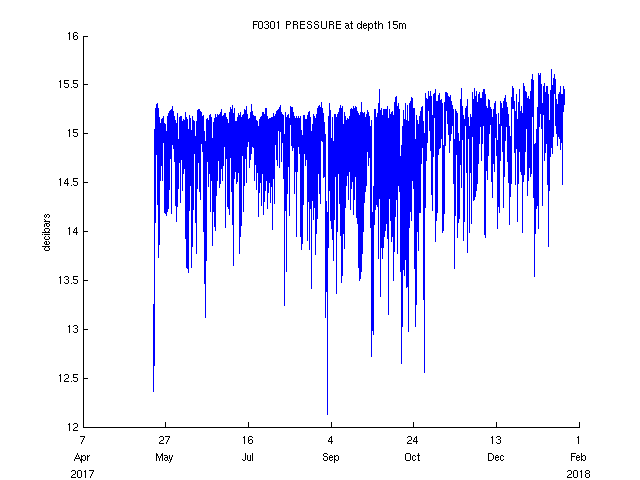

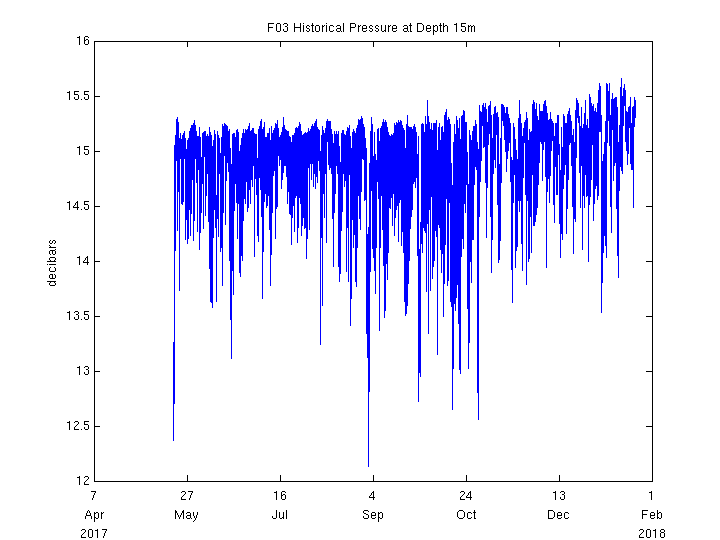

| Pressure (15m) | 15.5 decibars | 2018 Jan 23 1:00 AM |
|
|
|

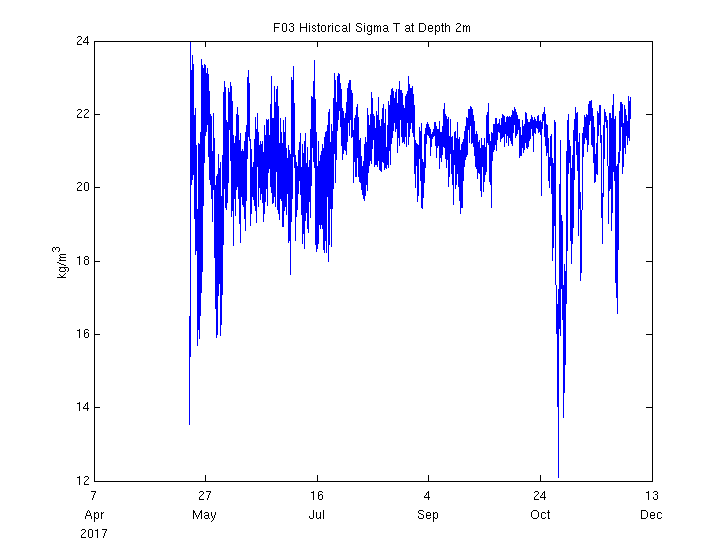

| Sigma-T (2m) | 22.1 kg/m^3 | 2017 Dec 03 9:20 AM |
|
|
|

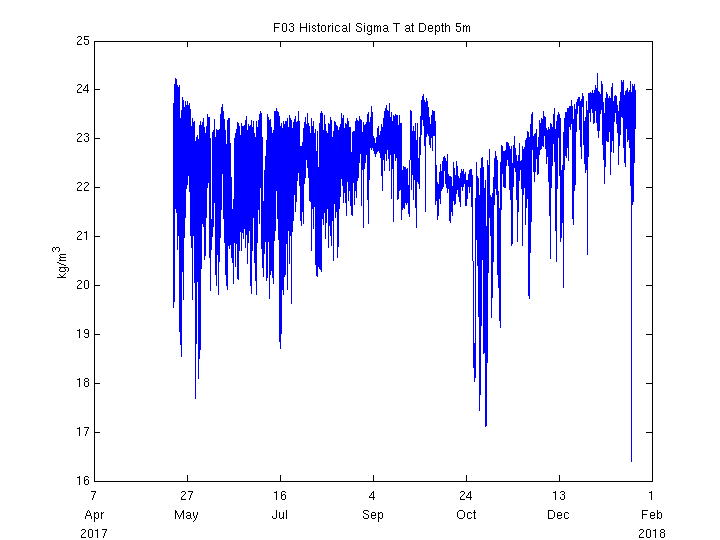

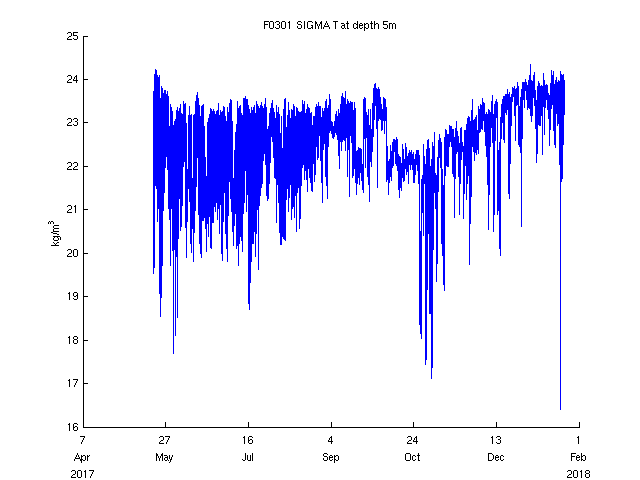

| Sigma-T (5m) | 23.3 kg/m^3 | 2018 Jan 23 1:00 AM |
|
|
|

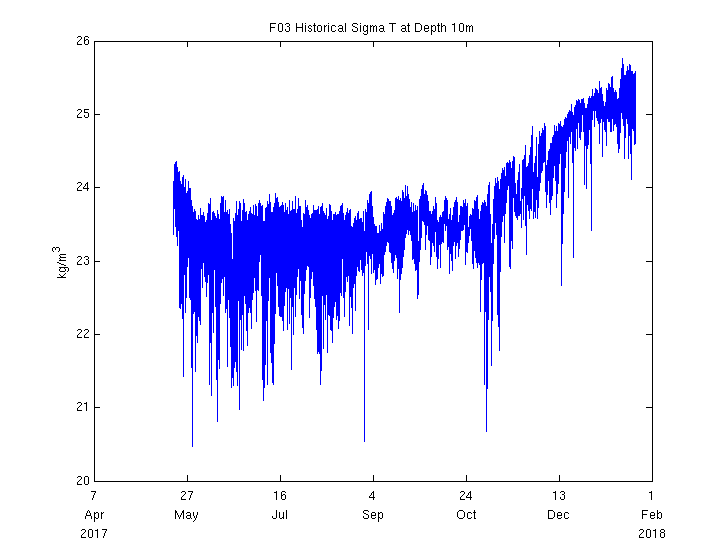

| Sigma-T (10m) | 24.9 kg/m^3 | 2018 Jan 23 1:00 AM |
|
|
|

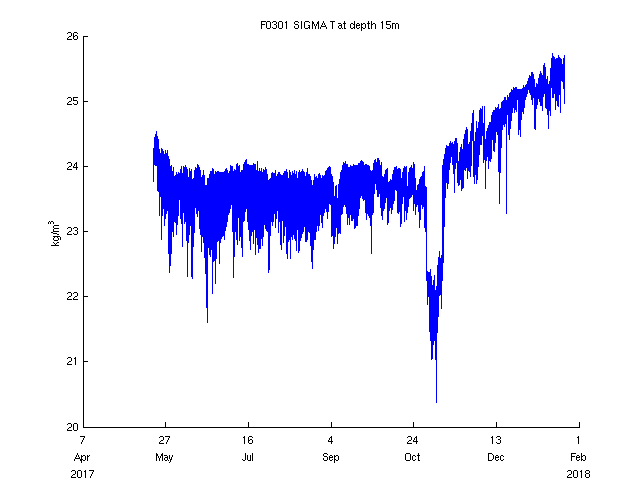

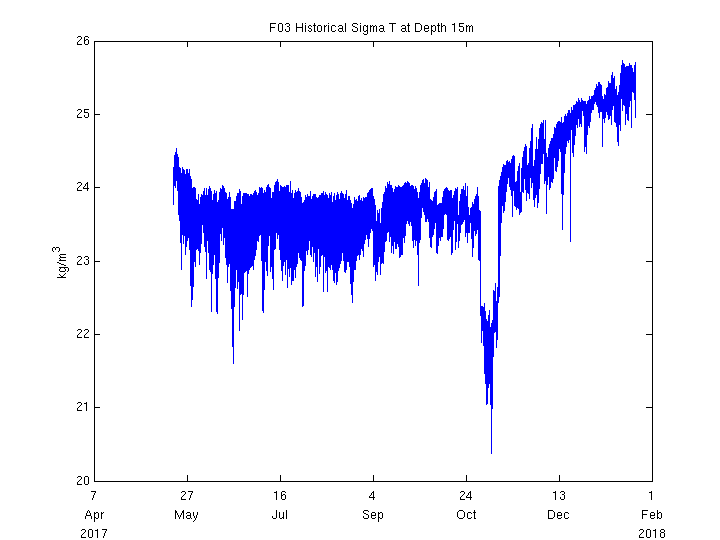

| Sigma-T (15m) | 25.2 kg/m^3 | 2018 Jan 23 1:00 AM |
|
|
|

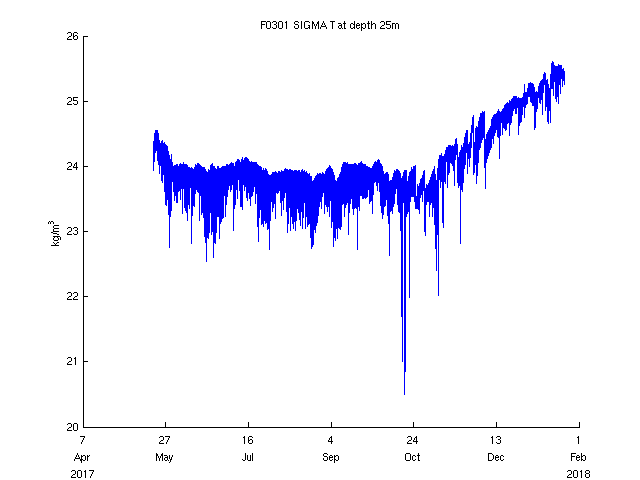

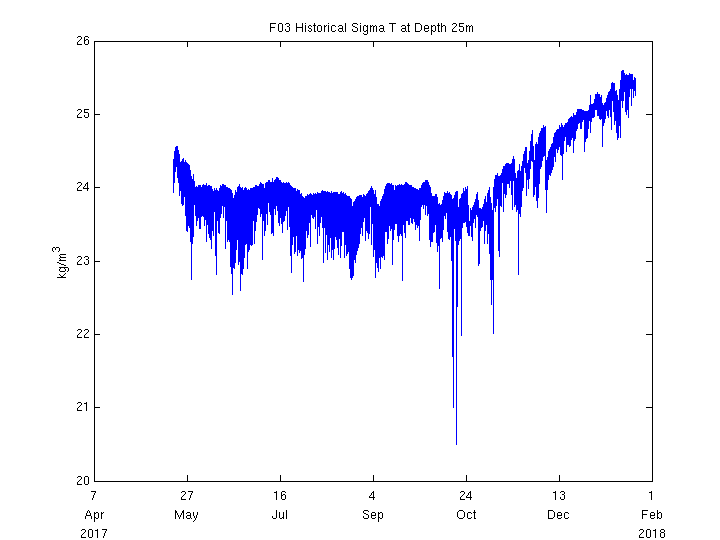

| Sigma-T (25m) | 25.4 kg/m^3 | 2018 Jan 23 1:00 AM |
|
|
|

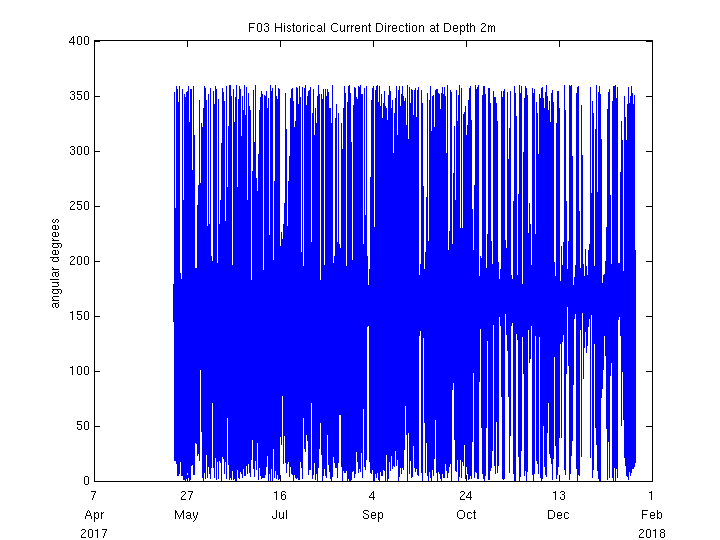

| Current Direction (2m) | East | 2018 Jan 23 1:00 AM |
|
|
|

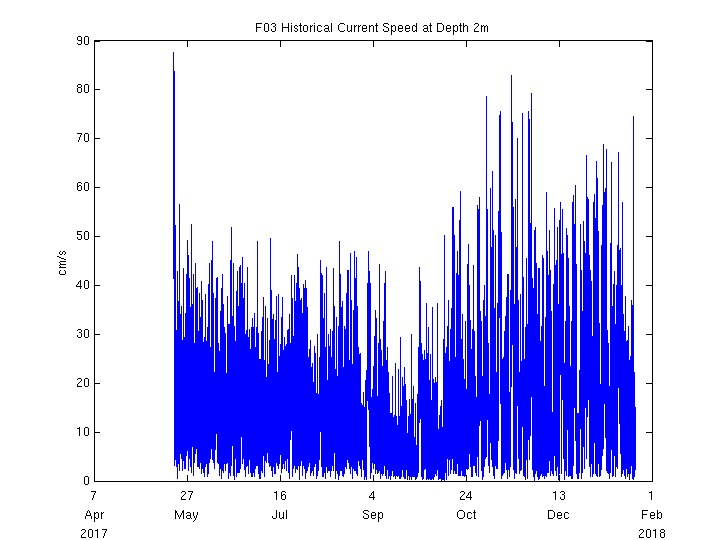

| Current Speed (2m) | 9.1 cm/s (0.18 kts) | 2018 Jan 23 1:00 AM |
|
|
|

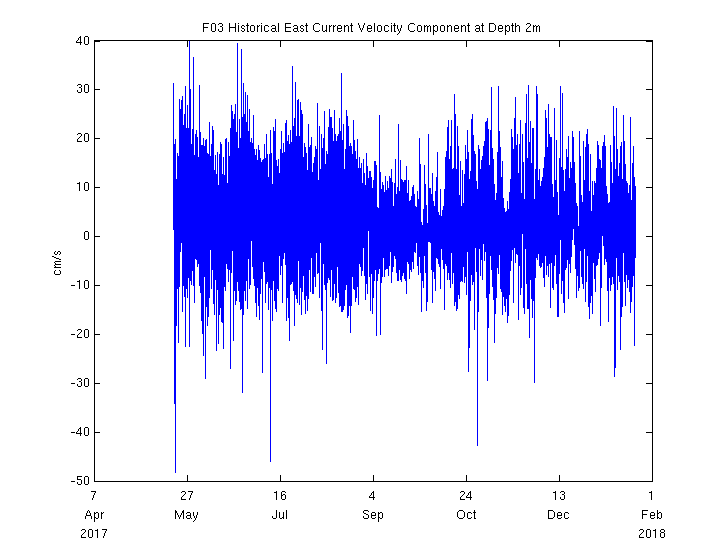

| East Current Velocity (2m) | 9.1 cm/s (0.18 kts) | 2018 Jan 23 1:00 AM |
|
|
|
| East Current Velocity (5m) | -1.3 cm/s (-0.03 kts) | 2018 Jan 23 12:40 AM | |||
| East Current Velocity (6m) | 0.6 cm/s (0.01 kts) | 2018 Jan 23 12:40 AM | |||
| East Current Velocity (7m) | 4.1 cm/s (0.08 kts) | 2018 Jan 23 12:40 AM | |||
| East Current Velocity (8m) | 6.1 cm/s (0.12 kts) | 2018 Jan 23 12:40 AM | |||
| East Current Velocity (9m) | 6.7 cm/s (0.13 kts) | 2018 Jan 23 12:40 AM | |||
| East Current Velocity (10m) | 5.8 cm/s (0.11 kts) | 2018 Jan 23 12:40 AM | |||
| East Current Velocity (11m) | 4.8 cm/s (0.09 kts) | 2018 Jan 23 12:40 AM | |||
| East Current Velocity (12m) | 3.5 cm/s (0.07 kts) | 2018 Jan 23 12:40 AM | |||
| East Current Velocity (13m) | 2.4 cm/s (0.05 kts) | 2018 Jan 23 12:40 AM | |||
| East Current Velocity (14m) | 1.8 cm/s (0.04 kts) | 2018 Jan 23 12:40 AM | |||
| East Current Velocity (15m) | -1.6 cm/s (-0.03 kts) | 2018 Jan 23 12:40 AM | |||
| East Current Velocity (16m) | -3.7 cm/s (-0.07 kts) | 2018 Jan 23 12:40 AM | |||
| East Current Velocity (18m) | -8.1 cm/s (-0.16 kts) | 2018 Jan 23 12:40 AM | |||
| East Current Velocity (19m) | -7.1 cm/s (-0.14 kts) | 2018 Jan 23 12:40 AM | |||
| East Current Velocity (20m) | -6.3 cm/s (-0.12 kts) | 2018 Jan 23 12:40 AM | |||
| East Current Velocity (21m) | -8.6 cm/s (-0.17 kts) | 2018 Jan 23 12:40 AM | |||
| East Current Velocity (22m) | -6.2 cm/s (-0.12 kts) | 2018 Jan 23 12:40 AM | |||

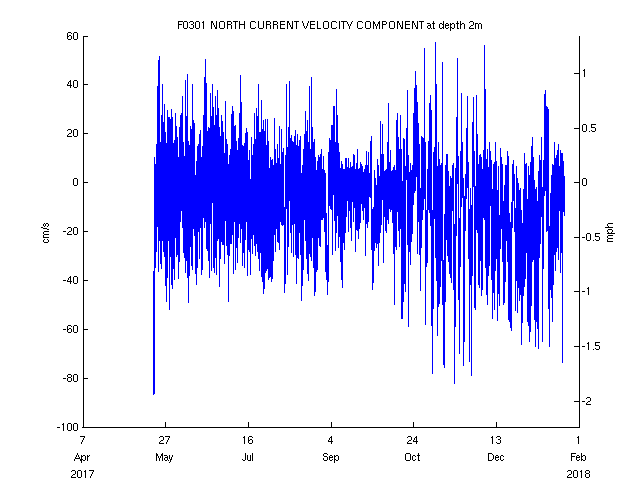

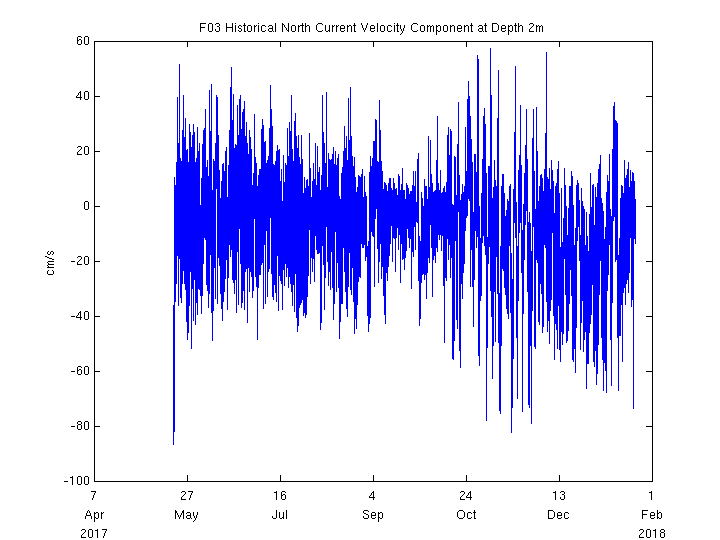

| North Current Velocity (2m) | -0.1 cm/s (-0.00 kts) | 2018 Jan 23 1:00 AM |
|
|
|
| North Current Velocity (5m) | 10.8 cm/s (0.21 kts) | 2018 Jan 23 12:40 AM | |||
| North Current Velocity (6m) | 9.2 cm/s (0.18 kts) | 2018 Jan 23 12:40 AM | |||
| North Current Velocity (7m) | 7.8 cm/s (0.15 kts) | 2018 Jan 23 12:40 AM | |||
| North Current Velocity (8m) | 6.1 cm/s (0.12 kts) | 2018 Jan 23 12:40 AM | |||
| North Current Velocity (9m) | 5.9 cm/s (0.11 kts) | 2018 Jan 23 12:40 AM | |||
| North Current Velocity (10m) | 4.1 cm/s (0.08 kts) | 2018 Jan 23 12:40 AM | |||
| North Current Velocity (11m) | 2.3 cm/s (0.05 kts) | 2018 Jan 23 12:40 AM | |||
| North Current Velocity (12m) | -1.1 cm/s (-0.02 kts) | 2018 Jan 23 12:40 AM | |||
| North Current Velocity (13m) | -6.7 cm/s (-0.13 kts) | 2018 Jan 23 12:40 AM | |||
| North Current Velocity (14m) | -9.3 cm/s (-0.18 kts) | 2018 Jan 23 12:40 AM | |||
| North Current Velocity (15m) | -13.4 cm/s (-0.26 kts) | 2018 Jan 23 12:40 AM | |||
| North Current Velocity (16m) | -12.6 cm/s (-0.25 kts) | 2018 Jan 23 12:40 AM | |||
| North Current Velocity (18m) | -16.7 cm/s (-0.32 kts) | 2018 Jan 23 12:40 AM | |||
| North Current Velocity (19m) | -15.5 cm/s (-0.30 kts) | 2018 Jan 23 12:40 AM | |||
| North Current Velocity (20m) | -13.1 cm/s (-0.25 kts) | 2018 Jan 23 12:40 AM | |||
| North Current Velocity (21m) | -9.9 cm/s (-0.19 kts) | 2018 Jan 23 12:40 AM | |||
| North Current Velocity (22m) | -9.1 cm/s (-0.18 kts) | 2018 Jan 23 12:40 AM | |||

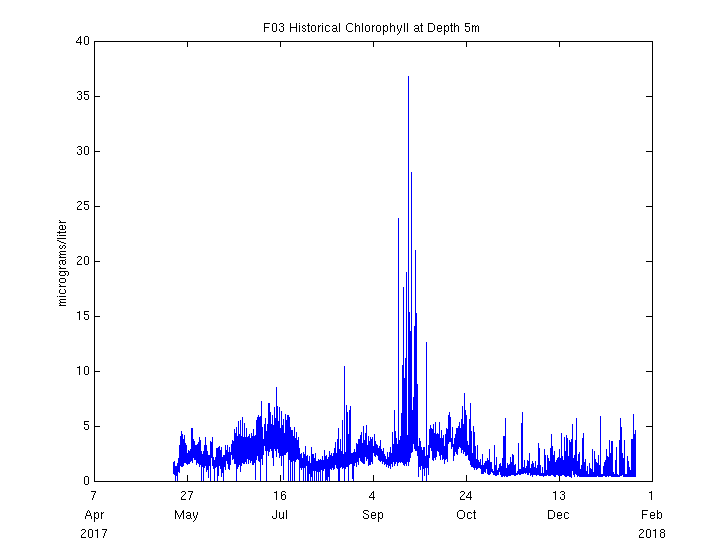

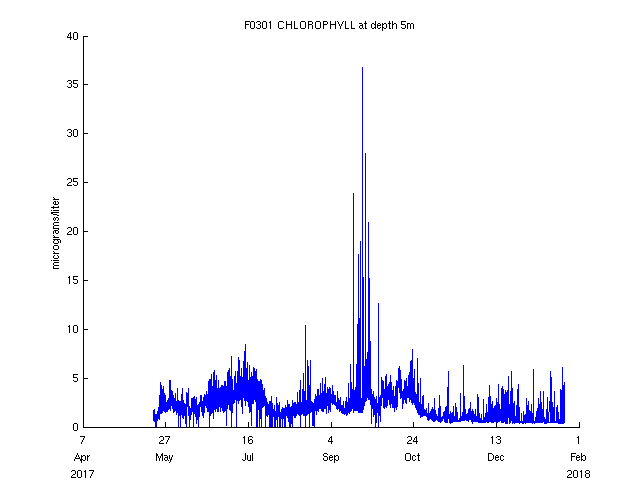

| Average Chlorophyll Concentration (5m) | 2.3 micrograms/liter | 2018 Jan 23 1:00 AM |
|
|
|

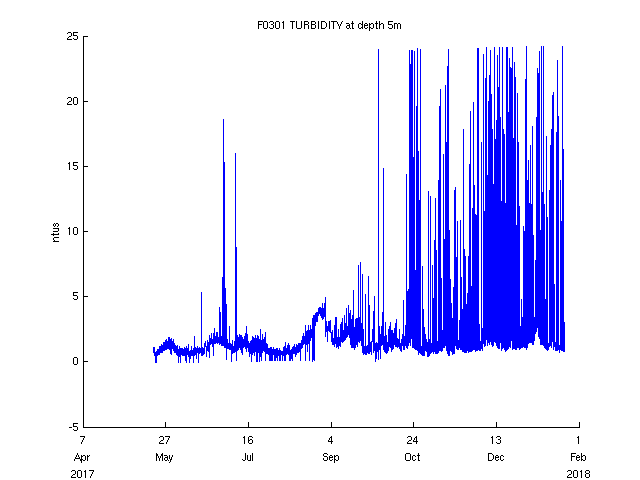

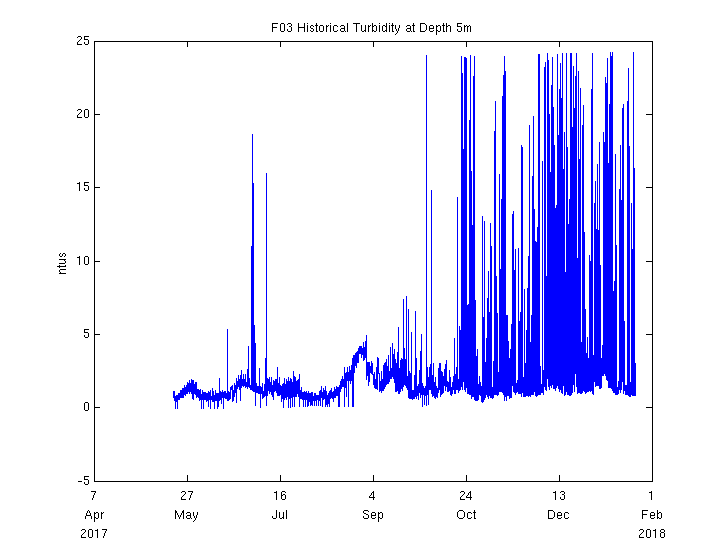

| Sea water Turbidity (5m) | 1.2 ntus | 2018 Jan 23 1:00 AM |
|
|
|

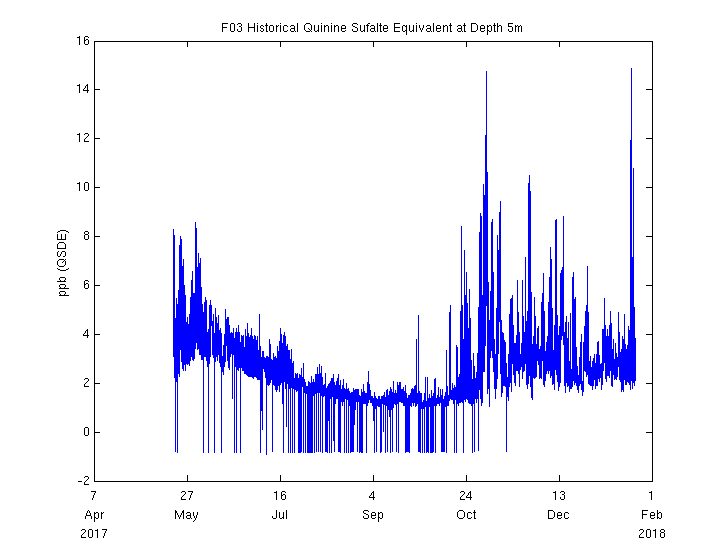

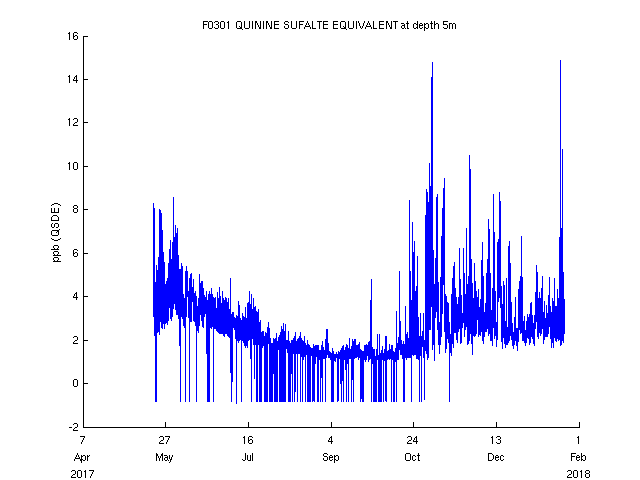

| CDOM Fluoresence (5m) | 3.6 ppb (QSDE) | 2018 Jan 23 1:00 AM |
|
|

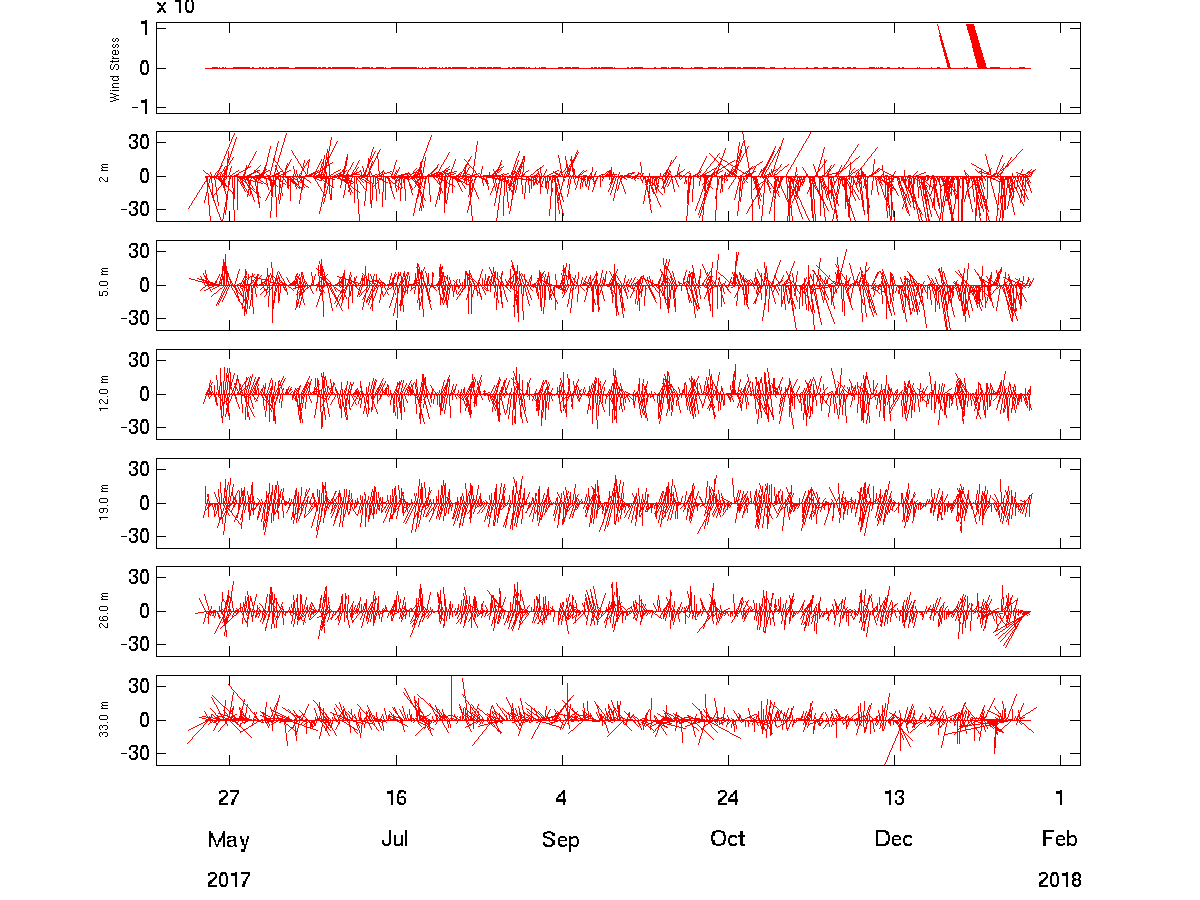

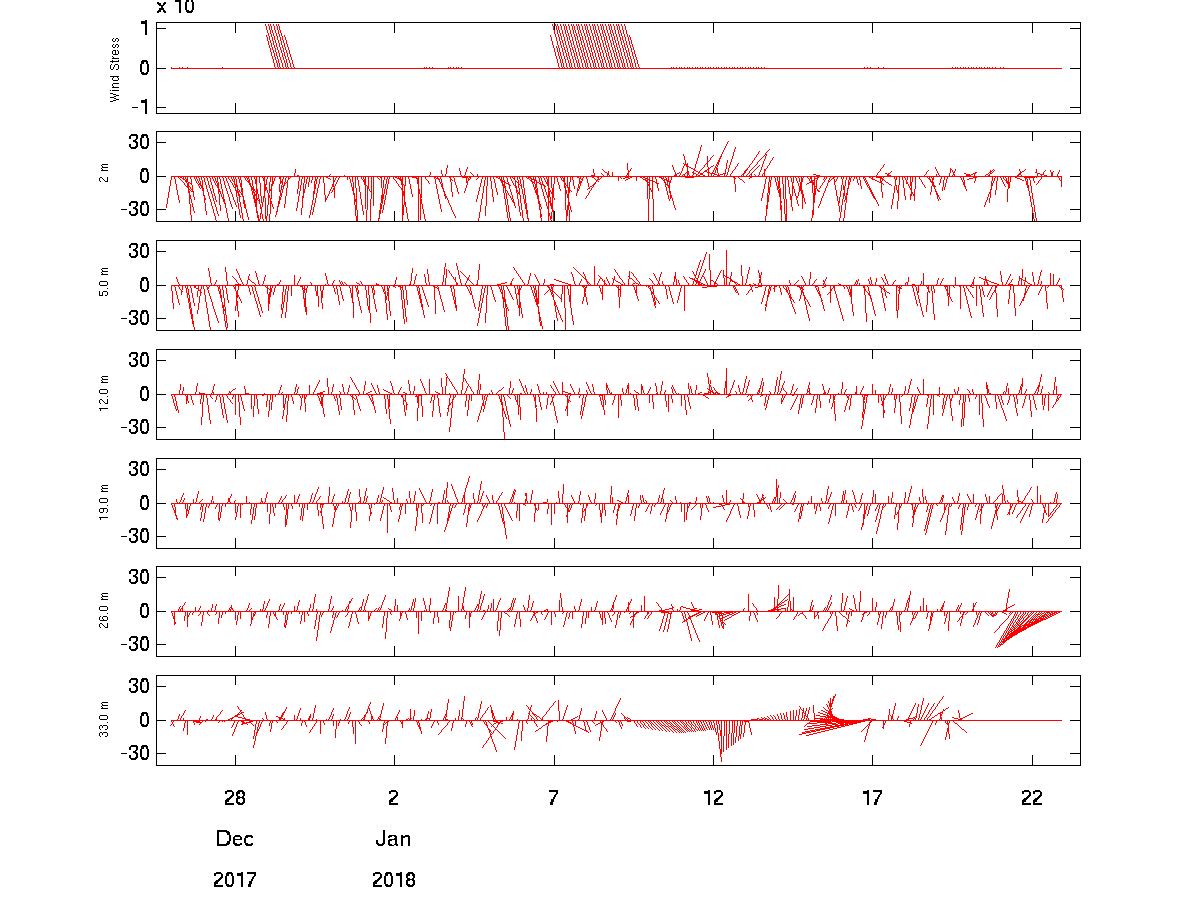

Measured Ocean Currents and Wind Stress
Hourly averaged wind stress at 4 m and currents (rotated to true north) at 2 m (current meter) and from 10 m to a maximum of 126 m (Doppler).
Latest Month's:
|
This Deployment:
|
Entire Position History:
|

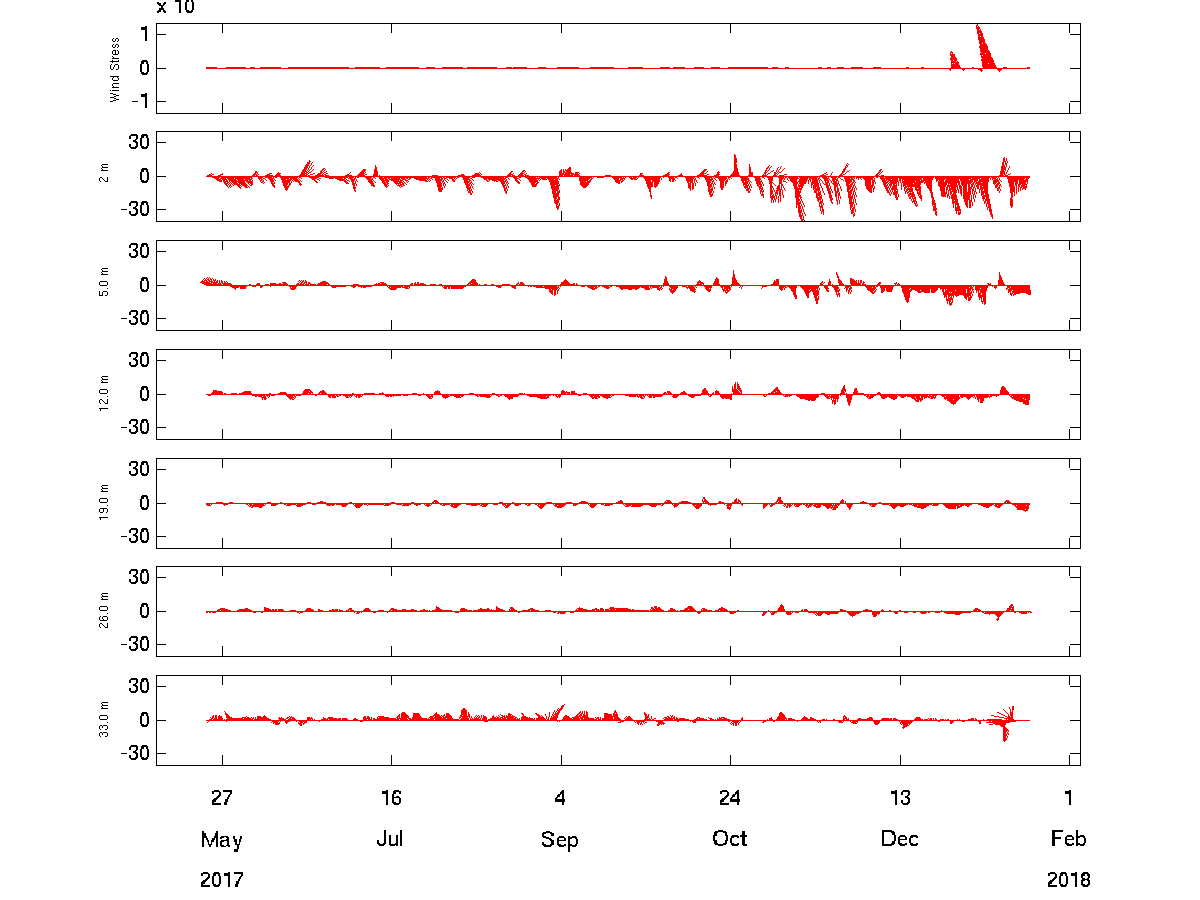

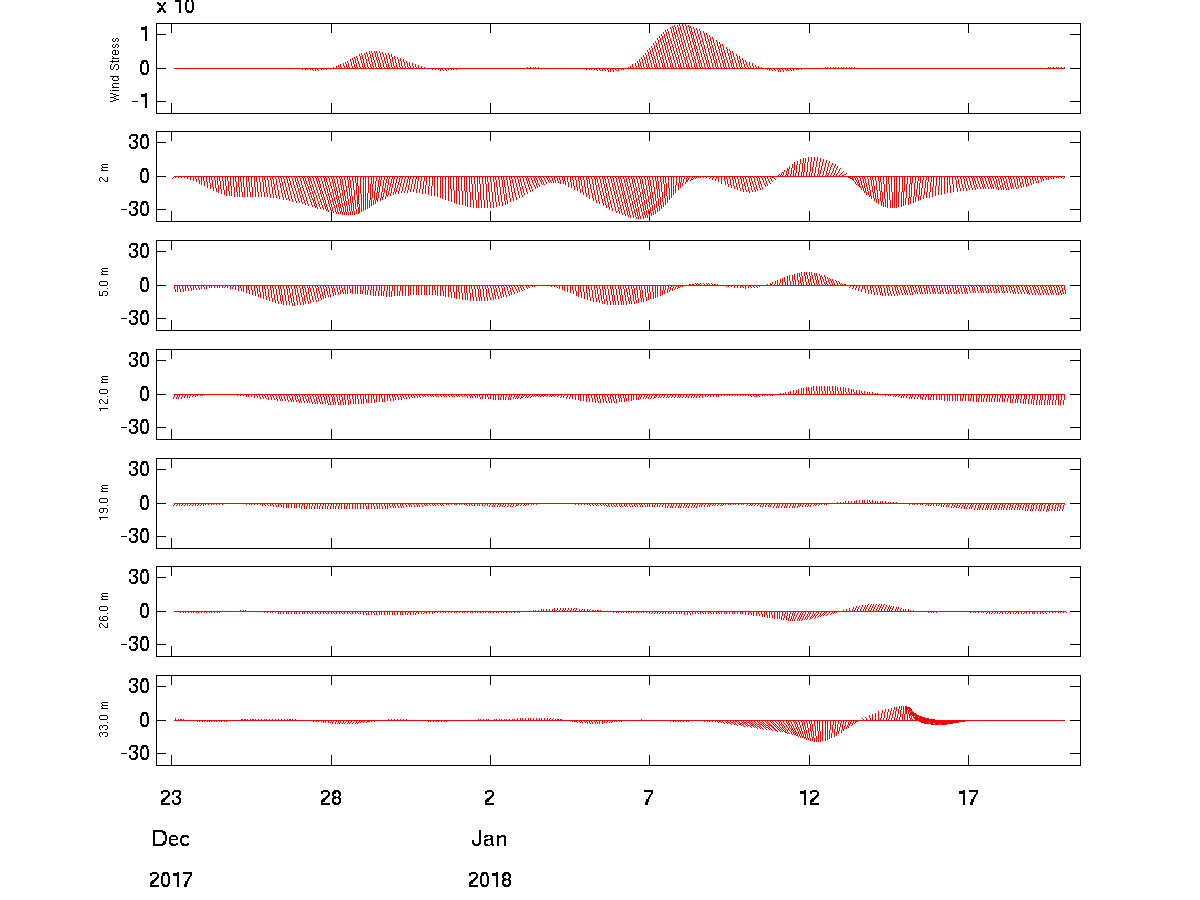

Wind and Residual Ocean Currents
Measured winds and currents which are low-pass filtered to remove tidal currents. Winds at 4 m above sea surface, surface currents at a depth of 2 m, and doppler currents at 4 meter bins from 10 meters to a maximum of 126 meters.
Latest Month's:
|
This Deployment:
|
Entire Position History:
|
