Mooring D0104 : New Meadows River (Recovered on May 16 2008)
|
Latitude: 43° 47.00´N Longitude: 69° 53.29´W Location Description: West of Bear Island Deployed: Dec 14 2007 Recovered: May 16 2008 Coast Guard Light List Letter: D Coast Guard Light List Number 6559 Water Depth: 34 meters (112 feet) Watch Circle Radius: 35 meters (115 feet) Last Cell Phone Transmission: May 16, 01 PM EST Last GOES Transmission: NA Latest Event: May 16, 01 PM EST
Recovered by R/V Ira C. |
|
Text Reports: Surface, Ocean, Currents OR Data Download (All data for this location)
Sensor Information (this deployment only)
Latest Conditions:
Click on the graph icons below to see time series plots of the listed variables. The latest conditions are in local time but all plots are in GMT(Summer EDT is 4 hours behind GMT; Winter EST is 5 hours behind GMT; Atlantic AST is always 4 hours behind GMT).
We follow the convention that depth is measure positive "down". That's why parameters like wind speed have negative depths attached to them! The latest eastward and northward subsurface currents are displayed at a subset of available depths; no plots are presently available for current velocity vectors below 2m.
| Variable (measurement depth in meters) | Last Observation |
Last Update (EDT) |
Most Recent Data Plot |
Full Deployment Plot |
Full Historical Plot |
|---|---|---|---|---|---|
| Air Temperature (-2m) | 14.8 C (58.6 F) | 2008 May 16 6:00 PM |
|
|
|

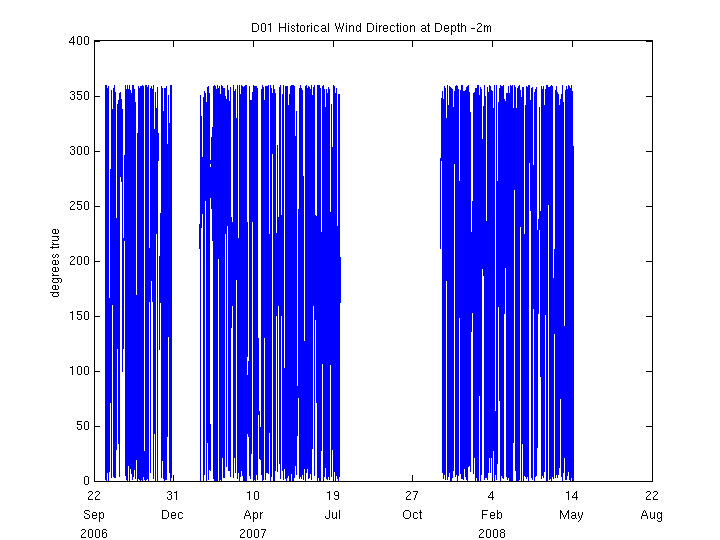

| Wind Direction [Primary] (-2m) | South | 2008 May 16 6:00 PM |
|
|
|

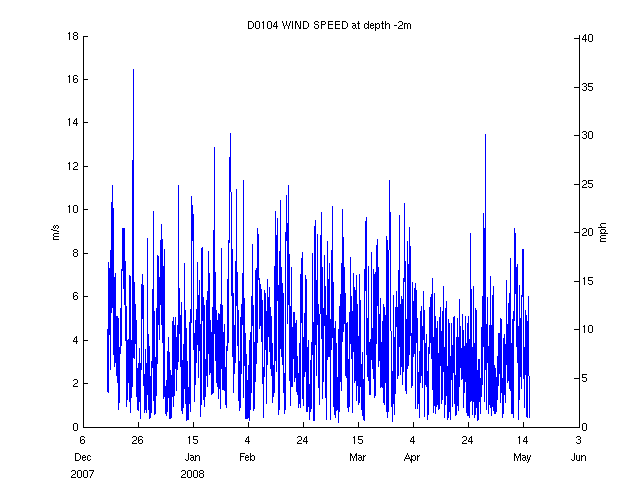

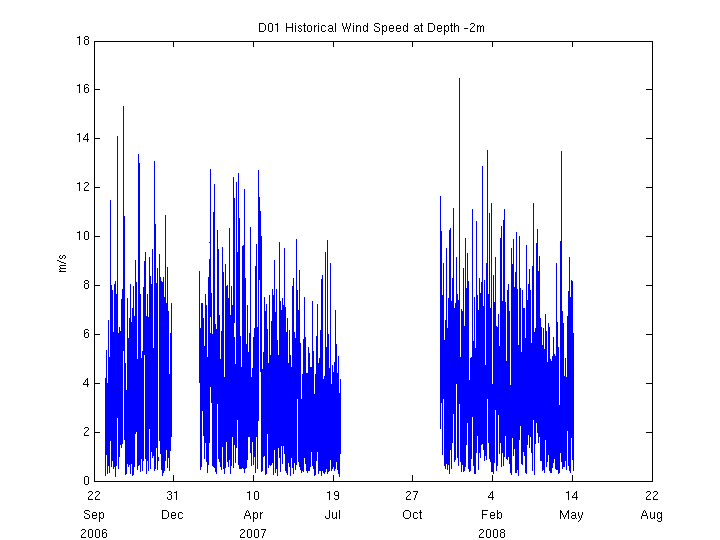

| Wind Speed [Primary] (-2m) | 3.6 m/s (8 mph, 7 kts) | 2008 May 16 6:00 PM |
|
|
|

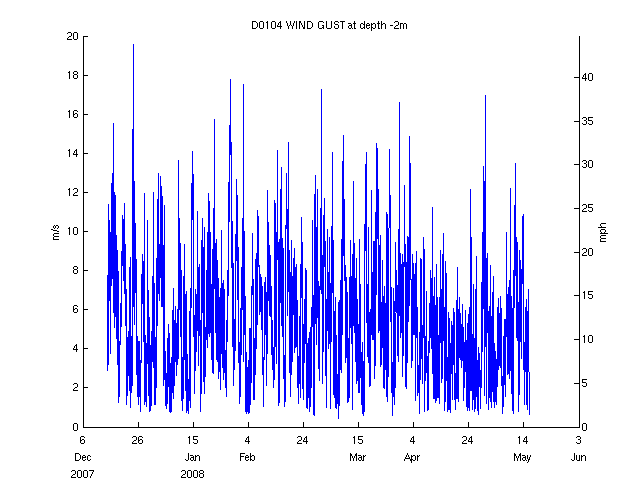

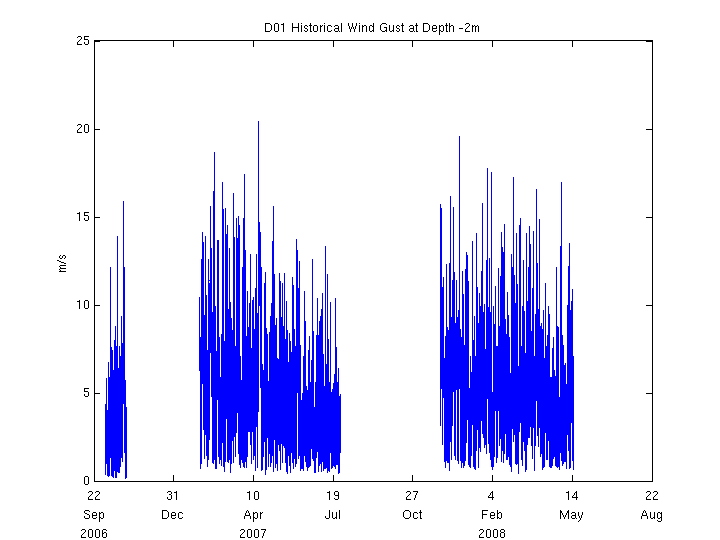

| Wind Gust [Primary] (-2m) | 4.7 m/s (10 mph, 9 kts) | 2008 May 16 6:00 PM |
|
|
|

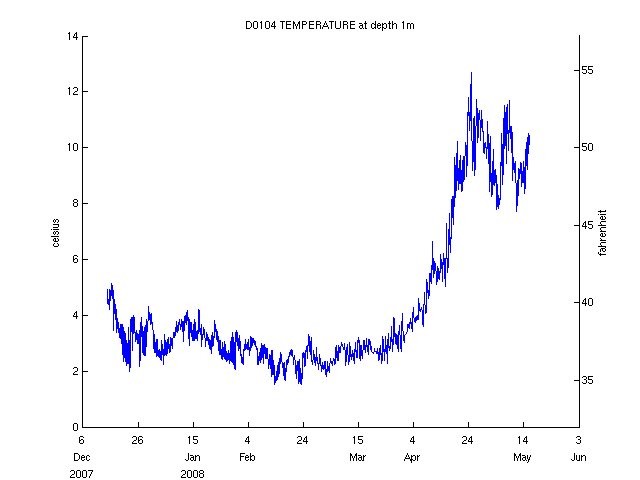

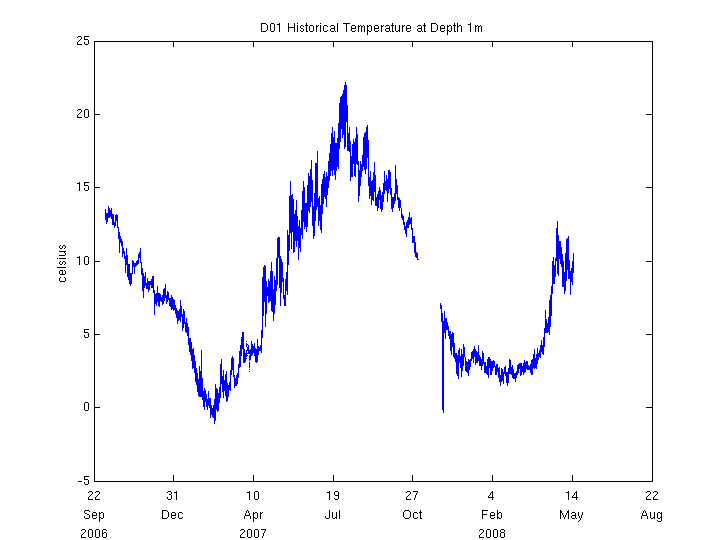

| Water Temperature (1m) | 11.6 C (52.8 F) | 2008 May 16 6:00 PM |
|
|
|
| Water Temperature (2m) | 10.7 C (51.3 F) | 2008 May 16 6:00 PM | |||

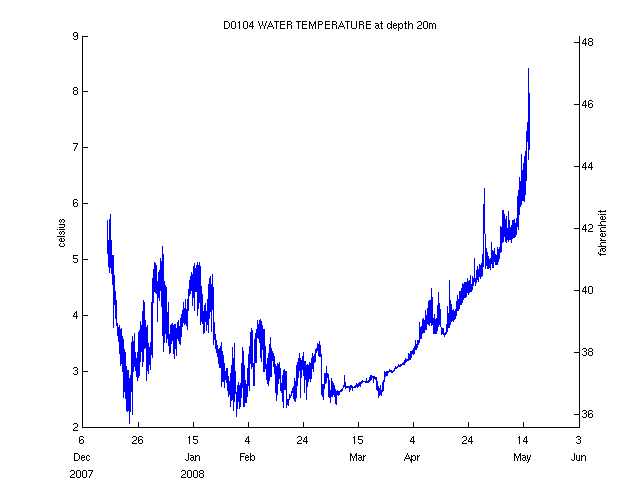

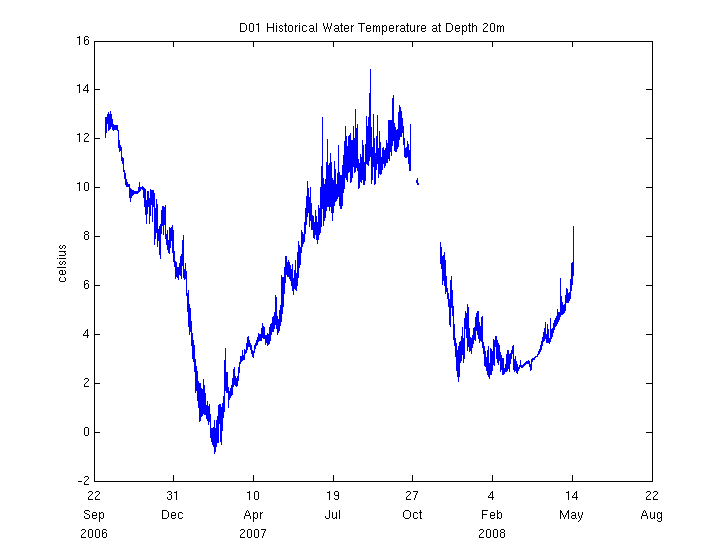

| Water Temperature (20m) | 6.7 C (44.1 F) (opt) | 2008 May 16 6:00 PM |
|
|
|
| Water Temperature (20m) | 6.9 C (44.4 F) | 2008 May 16 6:39 PM | |||

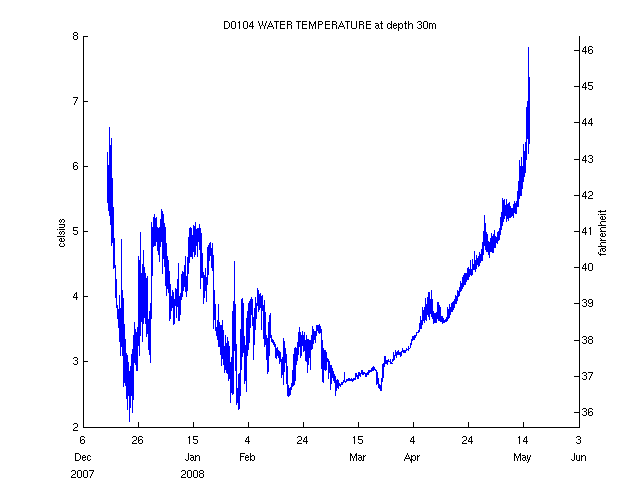

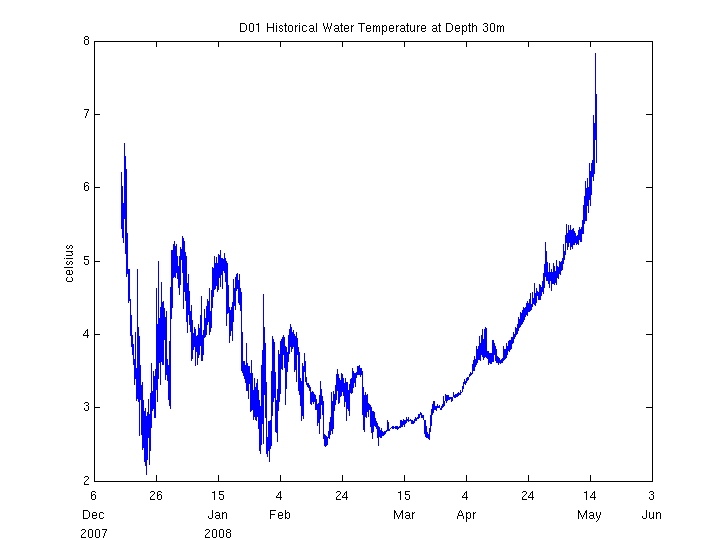

| Water Temperature (30m) | 6.1 C (43.0 F) (opt) | 2008 May 16 6:00 PM |
|
|
|
| Water Temperature (30m) | 6.1 C (43.0 F) | 2008 May 16 6:39 PM | |||

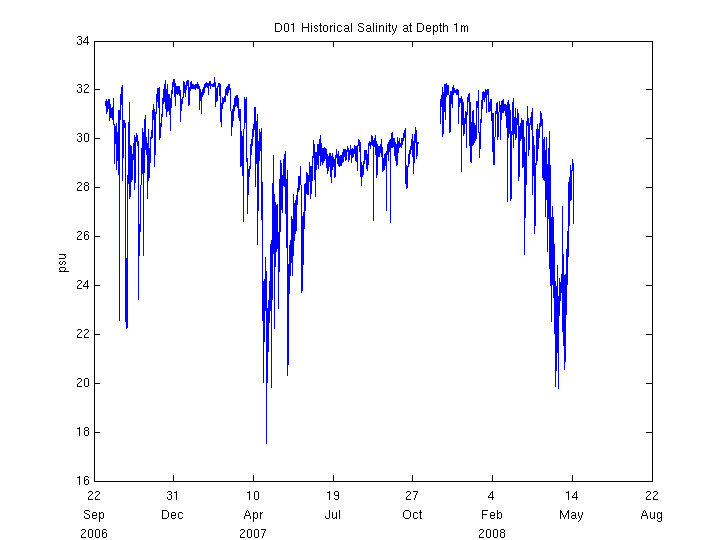

| Salinity (1m) | 28.0 psu | 2008 May 16 6:00 PM |
|
|
|
| Salinity (20m) | 30.2 psu | 2008 May 16 6:39 PM | |||
| Salinity (30m) | 30.8 psu | 2008 May 16 6:39 PM | |||

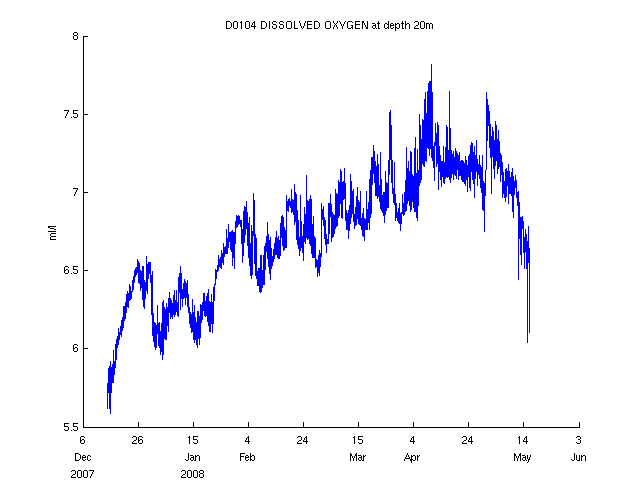

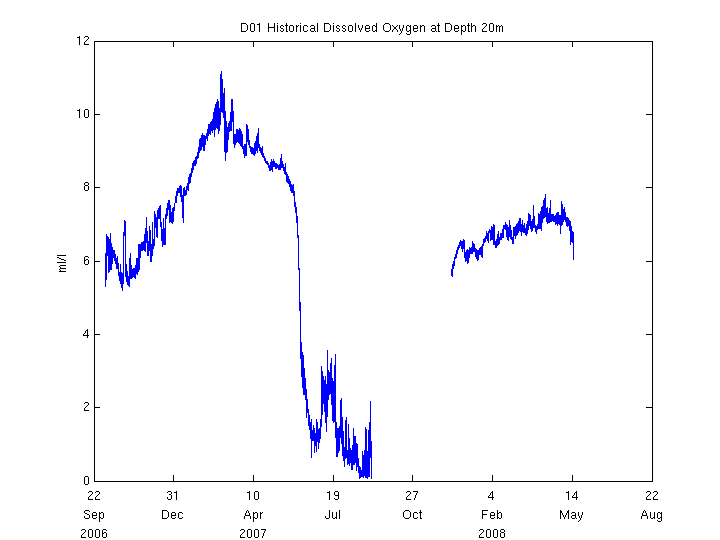

| Dissolved Oxygen (20m) | 6.4 ml/l (9.2 mg/l) | 2008 May 16 6:00 PM |
|
|
|

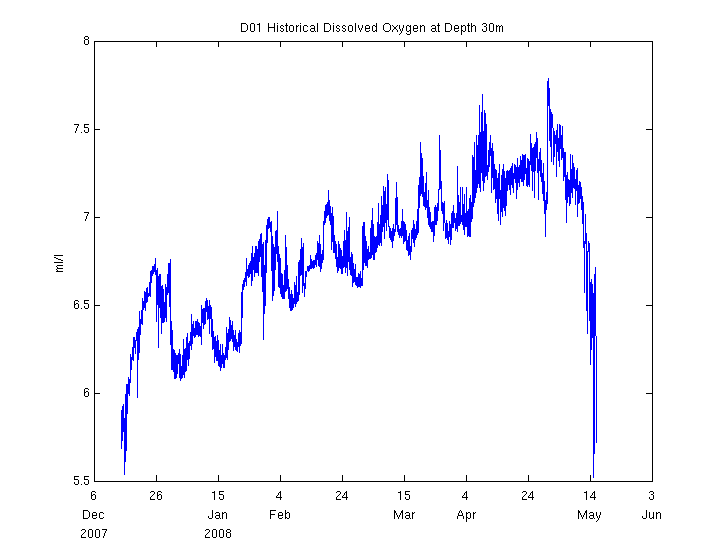

| Dissolved Oxygen (30m) | 6.2 ml/l (8.9 mg/l) | 2008 May 16 6:00 PM |
|
|
|

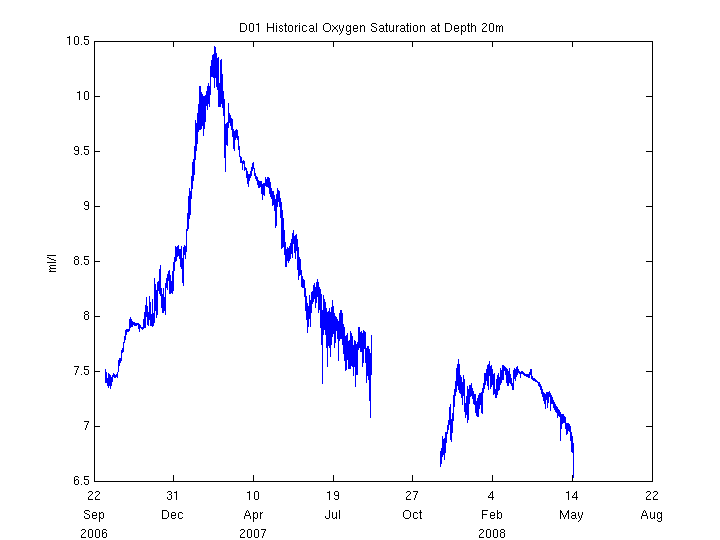

| Oxygen Saturation (20m) | 6.8 ml/l | 2008 May 16 6:00 PM |
|
|
|

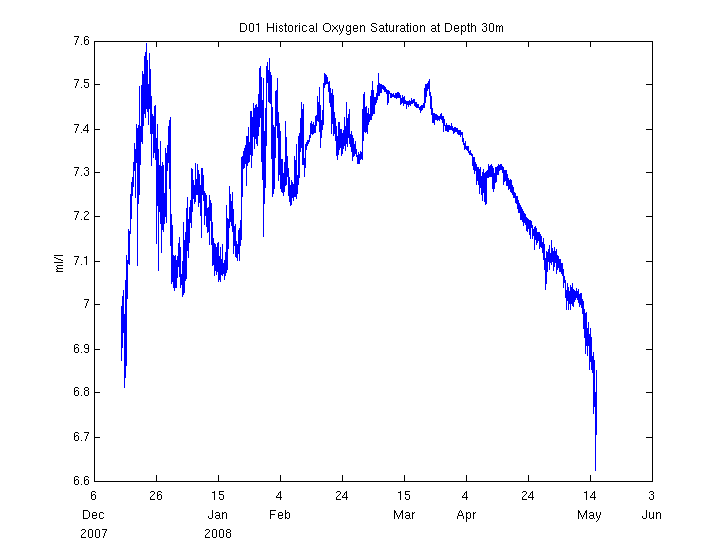

| Oxygen Saturation (30m) | 6.9 ml/l | 2008 May 16 6:00 PM |
|
|
|
| Percent Oxygen Saturation (20m) | 94.4 % | 2008 May 16 6:00 PM |
|
|
|

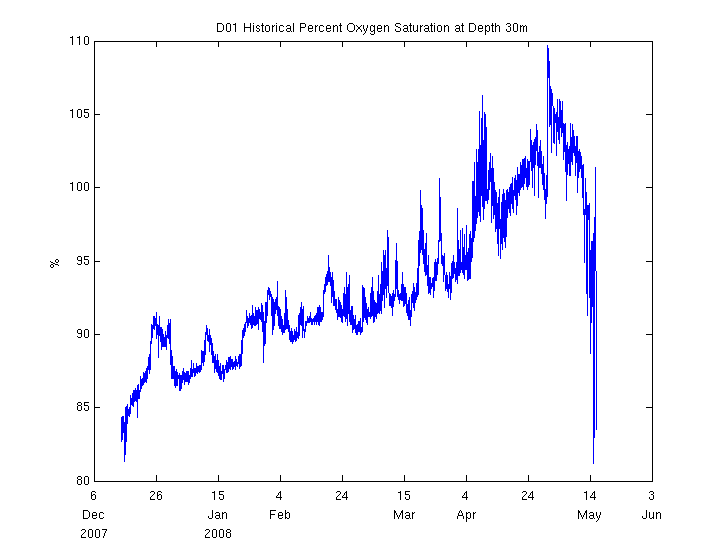

| Percent Oxygen Saturation (30m) | 90.4 % | 2008 May 16 6:00 PM |
|
|
|

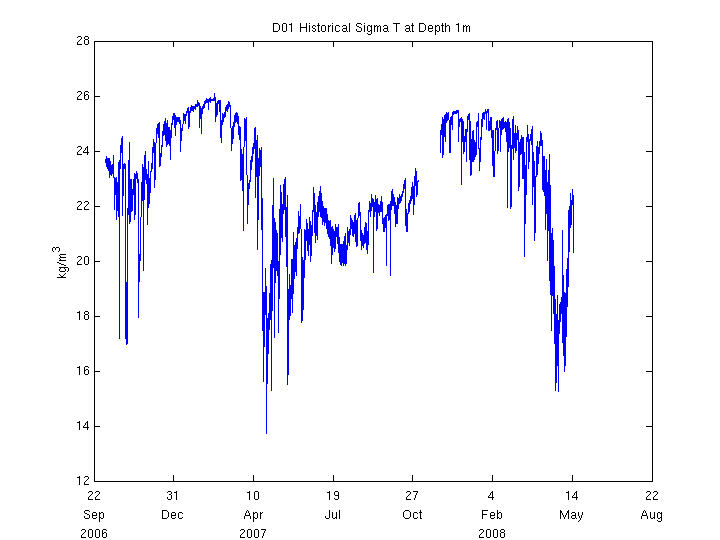

| Sigma-T (1m) | 21.3 kg/m^3 | 2008 May 16 6:00 PM |
|
|
|
| Sigma-T (20m) | 23.6 kg/m^3 | 2008 May 16 6:39 PM | |||
| Sigma-T (30m) | 24.2 kg/m^3 | 2008 May 16 6:39 PM | |||
| Current Direction (2m) | SSW | 2008 May 16 6:00 PM | |||
| Current Speed (2m) | 41.4 cm/s (0.80 kts) | 2008 May 16 6:00 PM | |||
| East Current Velocity (2m) | -8.7 cm/s (-0.17 kts) | 2008 May 16 6:00 PM | |||
| East Current Velocity (5m) | -8.6 cm/s (-0.17 kts) | 2008 May 09 7:00 AM | |||
| East Current Velocity (7m) | -2.9 cm/s (-0.06 kts) | 2008 May 09 7:00 AM | |||
| East Current Velocity (9m) | 2.2 cm/s (0.04 kts) | 2008 May 09 7:00 AM | |||
| East Current Velocity (11m) | 4.8 cm/s (0.09 kts) | 2008 May 09 7:00 AM | |||
| East Current Velocity (13m) | 4.6 cm/s (0.09 kts) | 2008 May 09 7:00 AM | |||
| East Current Velocity (15m) | 4.5 cm/s (0.09 kts) | 2008 May 09 7:00 AM | |||
| East Current Velocity (19m) | 1.8 cm/s (0.04 kts) | 2008 May 09 7:00 AM | |||
| East Current Velocity (21m) | -3.2 cm/s (-0.06 kts) | 2008 May 09 7:00 AM | |||
| North Current Velocity (2m) | -40.4 cm/s (-0.79 kts) | 2008 May 16 6:00 PM | |||
| North Current Velocity (5m) | -18.0 cm/s (-0.35 kts) | 2008 May 09 7:00 AM | |||
| North Current Velocity (7m) | -9.1 cm/s (-0.18 kts) | 2008 May 09 7:00 AM | |||
| North Current Velocity (9m) | -8.1 cm/s (-0.16 kts) | 2008 May 09 7:00 AM | |||
| North Current Velocity (11m) | -6.1 cm/s (-0.12 kts) | 2008 May 09 7:00 AM | |||
| North Current Velocity (13m) | -1.4 cm/s (-0.03 kts) | 2008 May 09 7:00 AM | |||
| North Current Velocity (15m) | -0.5 cm/s (-0.01 kts) | 2008 May 09 7:00 AM | |||
| North Current Velocity (19m) | 0.9 cm/s (0.02 kts) | 2008 May 09 7:00 AM | |||
| North Current Velocity (21m) | 3.8 cm/s (0.07 kts) | 2008 May 09 7:00 AM |

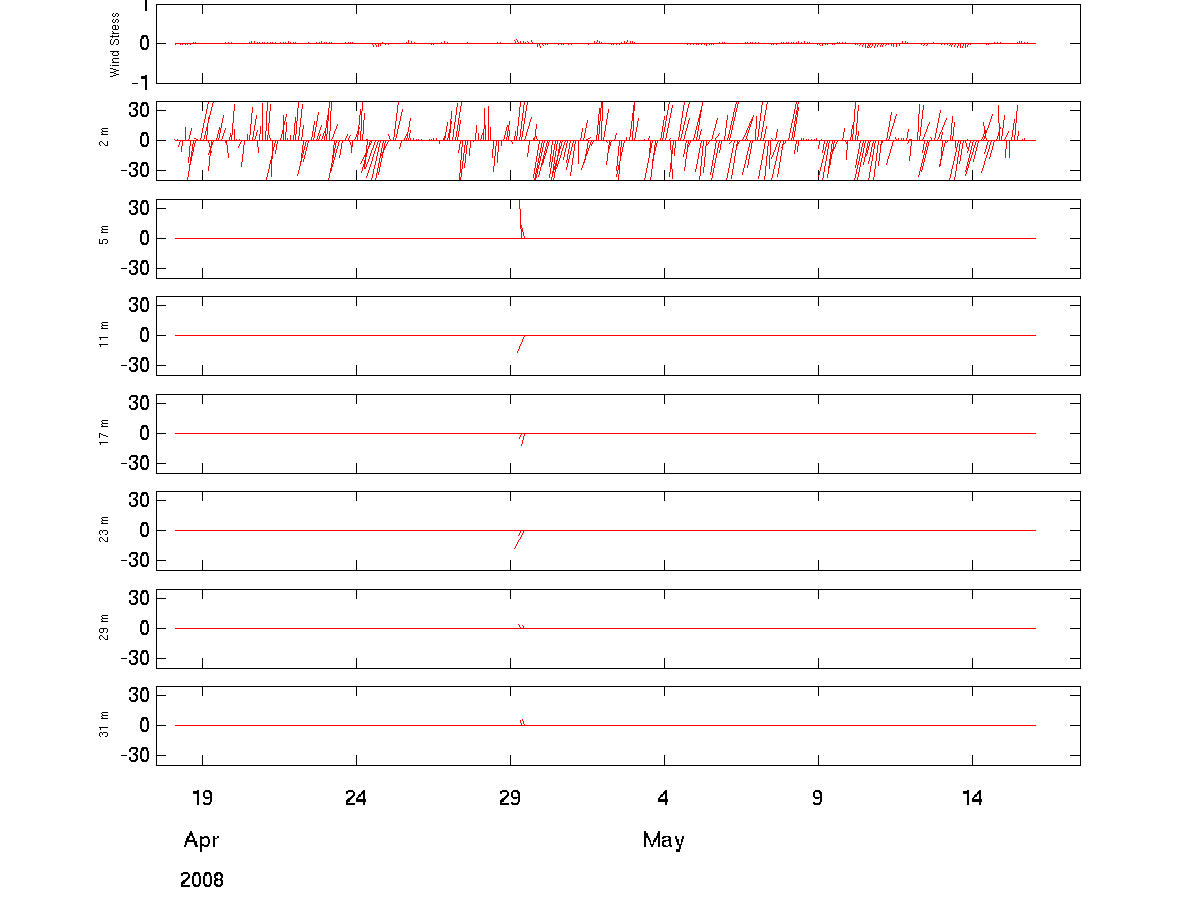

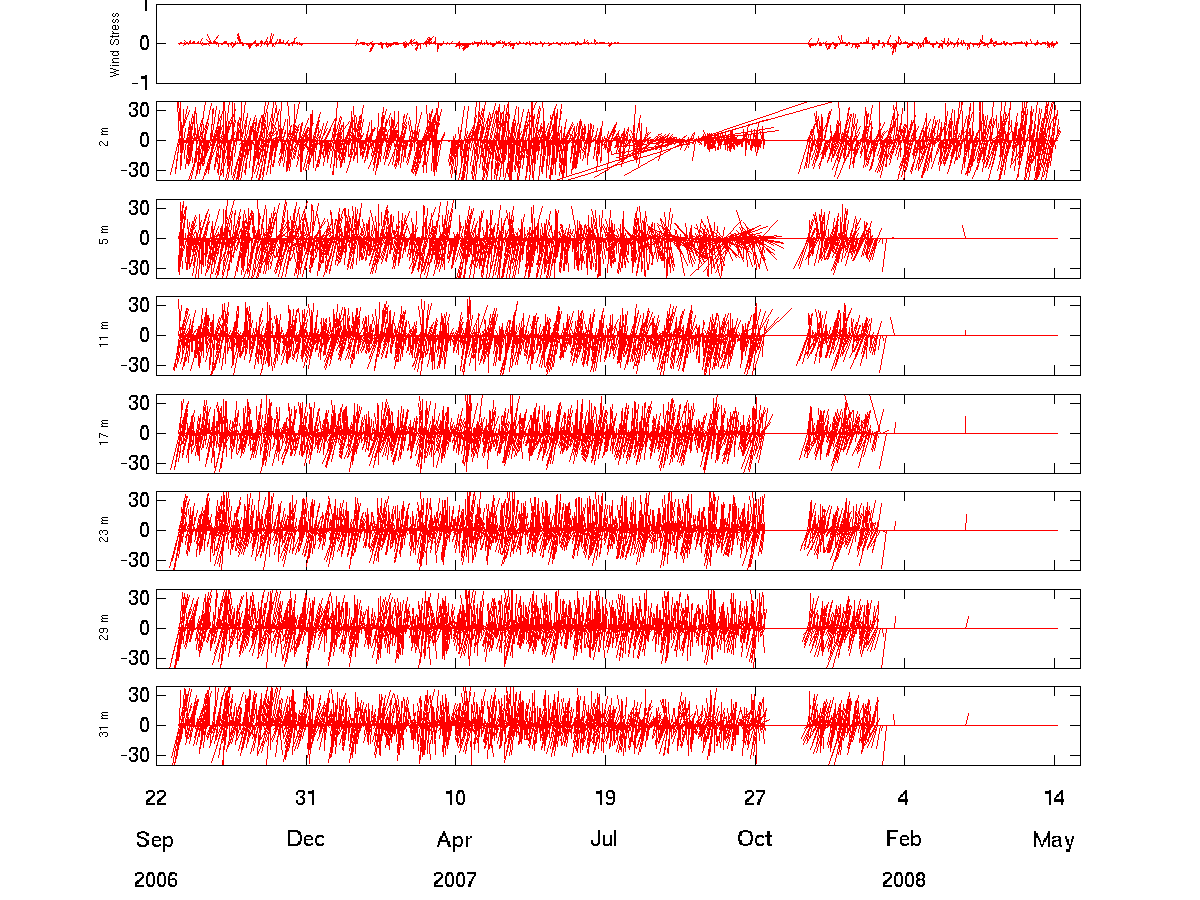

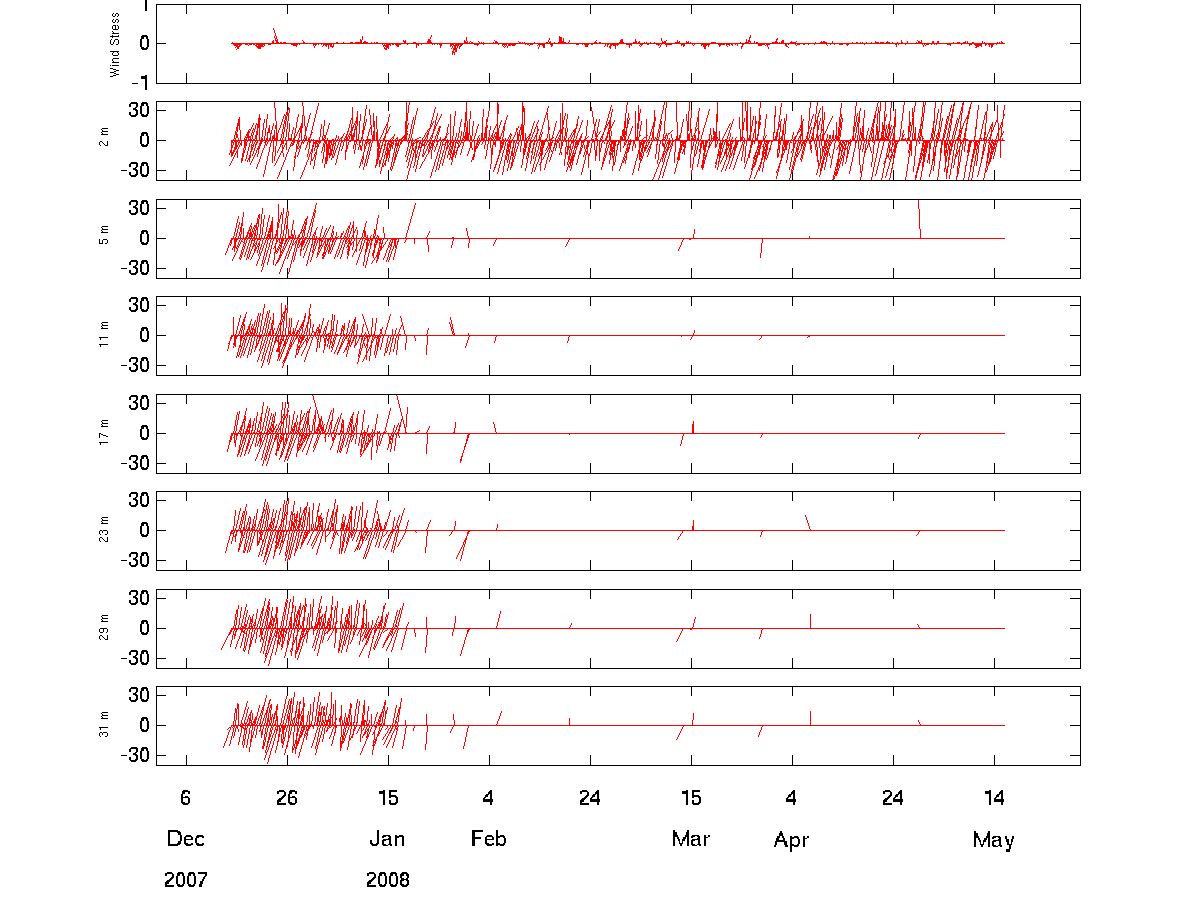

Measured Ocean Currents and Wind Stress
Hourly averaged wind stress at 4 m and currents (rotated to true north) at 2 m (current meter) and from 10 m to a maximum of 126 m (Doppler).
Latest Month's:
|
This Deployment:
|
Entire Position History:
|

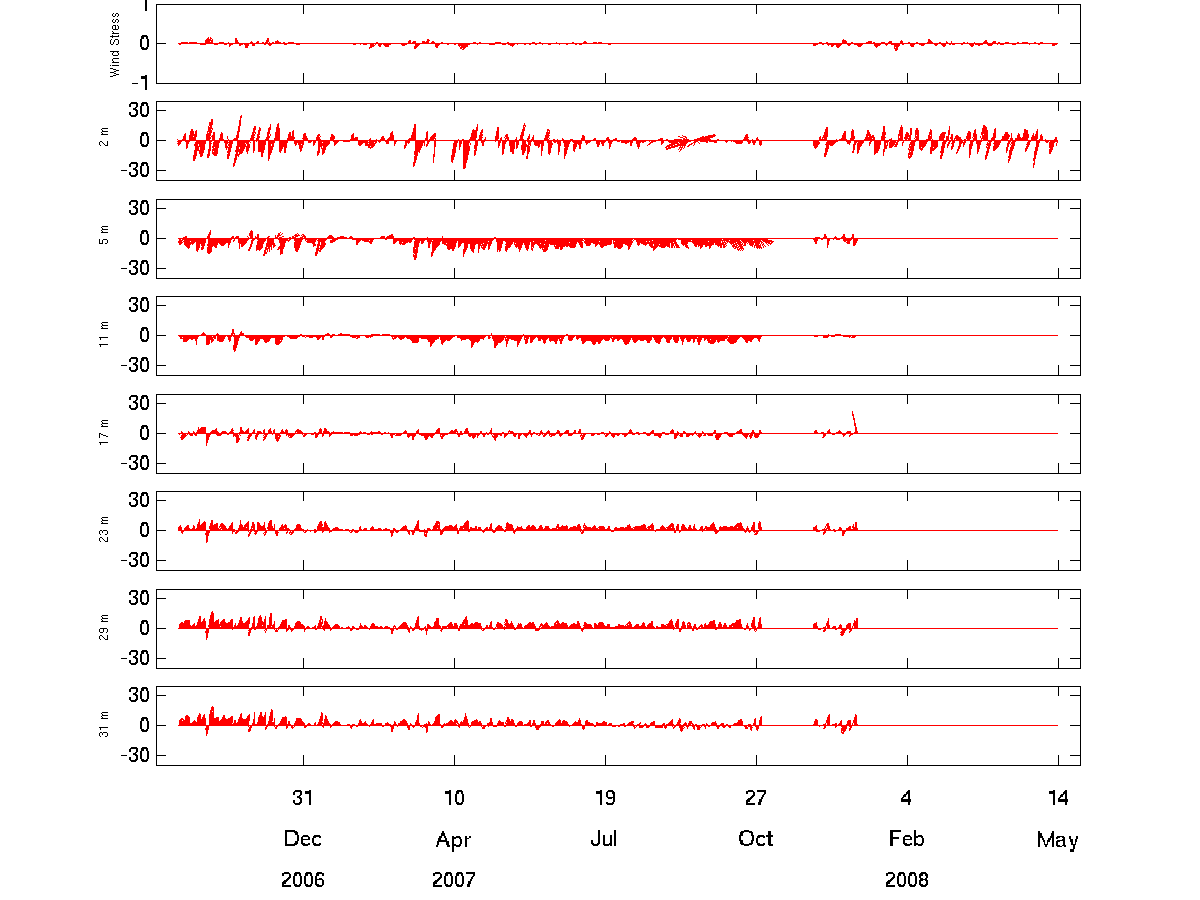

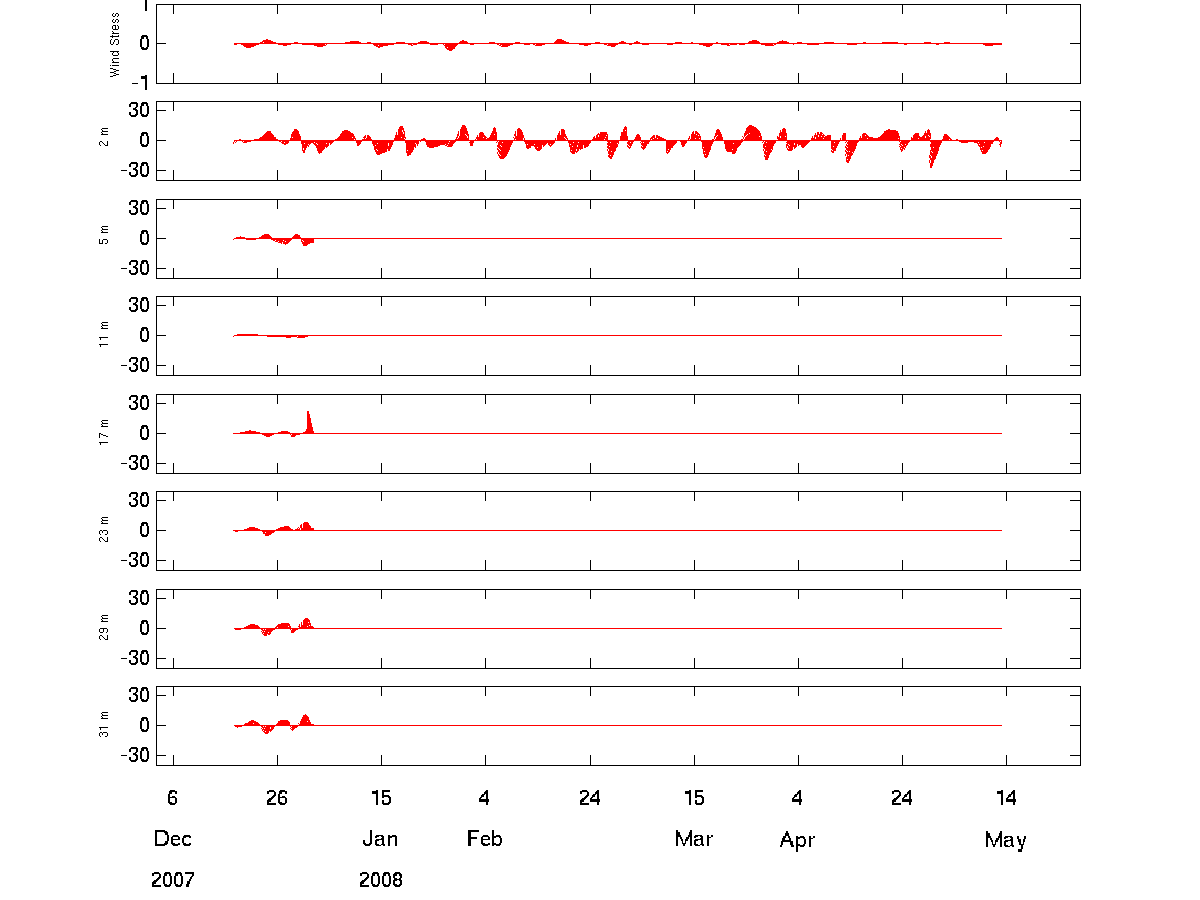

Wind and Residual Ocean Currents
Measured winds and currents which are low-pass filtered to remove tidal currents. Winds at 4 m above sea surface, surface currents at a depth of 2 m, and doppler currents at 4 meter bins from 10 meters to a maximum of 126 meters.
Latest Month's:
|
This Deployment:
|
Entire Position History:
|
